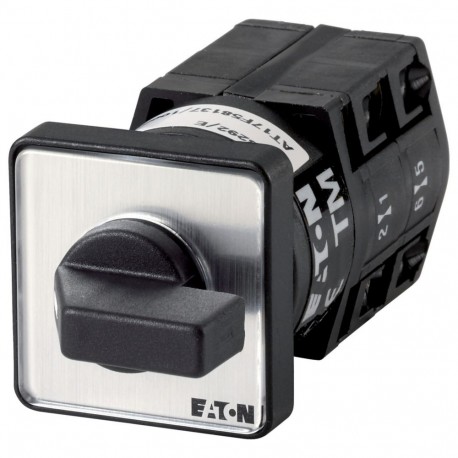

EATON - MOELLER TM-2-8260/E TM-2-8260/E 060640 Y7-60640 EATON ELECTRIC Step switches, Contacts: 4, 10 A, front plate: 0-2, 60 °, 2 steps.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-8260/E 060640 Y7-60640 EATON ELECTRIC Step switches, Contacts: 4, 10 A, front plate: 0-2, 60 °, 2 steps..

TM-2-8260/E

060640

Y7-60640

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 4, 10 A, front plate: 0-2, 60 °, 2 steps, 60°, maintained, flush mounting Step switch 4 poles 10 A Indicator plate: 0-2 60° Eaton Moeller® series TM Step switches, TM, 10 A, flush mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, With 0 (Off) position, 0-2, Design number 8260 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 4, Number of steps: 2 steps, 60°, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: 0-2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

TM-2-8260/E 060640 Y7-60640 EATON ELECTRIC Step switches, Contacts: 4, 10 A, front plate: 0-2, 60 °, 2 steps.. serves as a multi-step manual control switch utilized in industrial control panels to sequence operations or select distinct operating stages. Such switches are standard in custom machinery, heating systems, and multi-speed motor setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 30x30 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Step switch
Catalog Number
060640
Model Code
TM-2-8260/E
EAN
4015080606406
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.04 kg
Certifications
CE
UL report applies to both US and Canada
CSA-C22.2 No. 14-05
UL
UL 508
UL File No.: E36332
IEC/EN 60947-5-1
CSA-C22.2 No. 94
CSA
Certified by UL for use in Canada
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
IEC/EN 60947-3
