> EATON - MOELLER > Disconnectors and Cam Switches > 044029

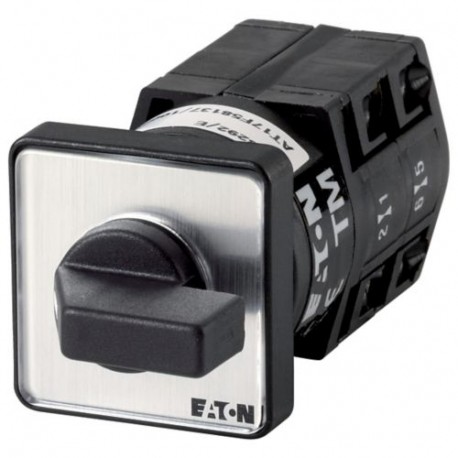

EATON - MOELLER TM-2-8231/E TM-2-8231/E 044029 Y7-44029 EATON ELECTRIC Step switches, Contacts: 4, 10 A, front plate: 1-4, 60 °, 4 steps.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-8231/E 044029 Y7-44029 EATON ELECTRIC Step switches, Contacts: 4, 10 A, front plate: 1-4, 60 °, 4 steps..

TM-2-8231/E

044029

Y7-44029

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 4, 10 A, front plate: 1-4, 60 °, 4 steps, 60°, maintained, flush mounting Step Switch 4 Pole 10 A Indicator Plate: 1-4 60° Eaton Moeller® series TM Step switches, TM, 10 A, flush mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, Without 0 (Off) position, 1-4, Design number 8231 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 4, Number of steps: 4 steps, 60°, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, Without 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: 1-4

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Step switch
Catalog Number
044029
Model Code
TM-2-8231/E
EAN
4015080440291
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.04 kg
Certifications
UL report applies to both US and Canada
CSA
UL 508
UL
VDE 0660
Certified by UL for use in Canada
CSA-C22.2 No. 94
IEC/EN 60947-3
CE
CSA-C22.2 No. 14-05
UL File No.: E36332
IEC/EN 60947-5-1
IEC/EN 60947
UL Category Control No.: NLRV

ETIM for 044029 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) Level switch
Number of poles (EF001391) 1
Max. rated operation voltage Ue AC (EF007355) 500 V
Rated permanent current Iu (EF001389) 10 A
Number of switch positions (EF000231) 4
With zero (off) position (EF001416) No
With retraction in 0-position (EF002428) No
Device construction (EF008240) Built-in device
Width in number of modular spacings (EF002950) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Type of control element (EF006976) Toggle
Front shield size (EF007176) 30x30 mm
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
