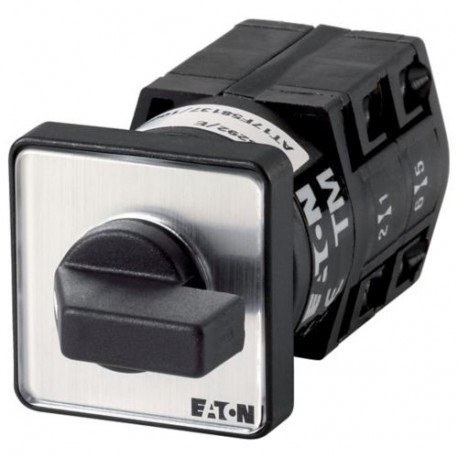

TM-2-8230/E 039283 Y7-39283 EATON ELECTRIC Step switches, Contacts: 3, 10 A, front plate: 1-3, 60 °, 3 steps..
TM-2-8230/E
039283
Y7-39283
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller step switch (part number TM-2-8230/E) is a manual rotary control device used in industrial machinery and control panels to select specific operational tiers or settings sequentially. These multi-position switches allow operators to cycle through distinct circuit paths for process management. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 1
- Max. rated operation voltage Ue AC (EF007355): 500 V
- Rated permanent current Iu (EF001389): 10 A
- Number of switch positions (EF000231): 3
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 30x30 mm
More info
▲General specifications
VDE 0660
CE
CSA-C22.2 No. 94
IEC/EN 60947-5-1
CSA-C22.2 No. 14-05
UL
CSA
UL 508
UL report applies to both US and Canada
Certified by UL for use in Canada
UL Category Control No.: NLRV
UL File No.: E36332
IEC/EN 60947-3
