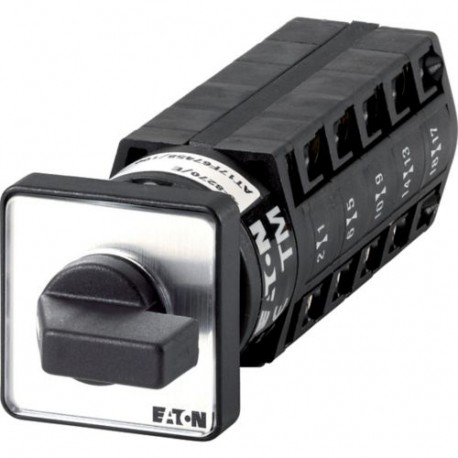

EATON - MOELLER TM-5-8237/E TM-5-8237/E 069150 Y7-69150 EATON ELECTRIC Step switches, Contacts: 10, 10 A, front plate: 1-10, 30 °, 10 st.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-5-8237/E 069150 Y7-69150 EATON ELECTRIC Step switches, Contacts: 10, 10 A, front plate: 1-10, 30 °, 10 st..

TM-5-8237/E

069150

Y7-69150

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 10, 10 A, front plate: 1-10, 30 °, 10 steps, 30°, maintained, flush mounting Step switch 10 poles 10 A Indicator plate: 1-10 30° Eaton Moeller® series TM Step switches, TM, 10 A, flush mounting, 5 contact unit(s), Contacts: 10, 30 °, maintained, Without 0 (Off) position, 1-10, Design number 8237

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller TM-5-8237/E step switch delivers compact manual selection across ten distinct circuit positions.

Miniature rotary switches of this type help manage multi-step adjustments inside space-constrained control desks and distribution boards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: TM-5-8237/E
  • Catalogue code: 069150

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Step switch
Catalog Number
069150
Model Code
TM-5-8237/E
EAN
4015080691501
Product Length/Depth
110 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.074 kg
Certifications
UL 508
UL report applies to both US and Canada
CSA-C22.2 No. 14-05
IEC/EN 60947-5-1
CSA
CE
IEC/EN 60947
UL File No.: E36332
VDE 0660
CSA-C22.2 No. 94
Certified by UL for use in Canada
UL
IEC/EN 60947-3
UL Category Control No.: NLRV

Product Datasheet
