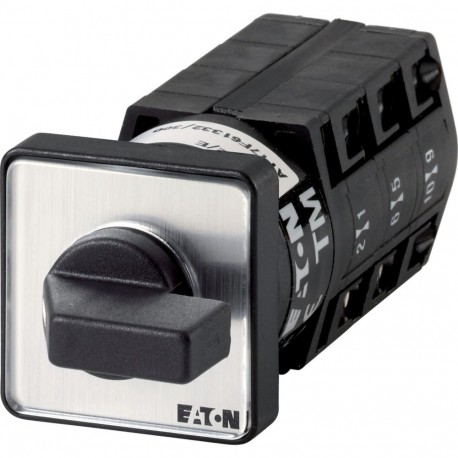

TM-3-8244/E 081997 Y7-81997 EATON ELECTRIC Step switches, Contacts: 6, 10 A, front plate: 0-6, 30 °, 6 steps..
TM-3-8244/E
081997
Y7-81997
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Step switches like the Eaton Moeller part number TM-3-8244/E facilitate multi-stage manual control of electrical equipment and auxiliary circuits. Such rotary switches are frequently installed in control consoles where operators must cycle sequentially through distinct operational levels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 1
- Max. rated operation voltage Ue AC (EF007355): 500 V
- Rated permanent current Iu (EF001389): 10 A
- Number of switch positions (EF000231): 7
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 30x30 mm
More info
▲General specifications
IEC/EN 60947-5-1
VDE 0660
IEC/EN 60947-3
CSA-C22.2 No. 94
UL
CE
Certified by UL for use in Canada
UL Category Control No.: NLRV
UL 508
UL File No.: E36332
UL report applies to both US and Canada
CSA-C22.2 No. 14-05
CSA
