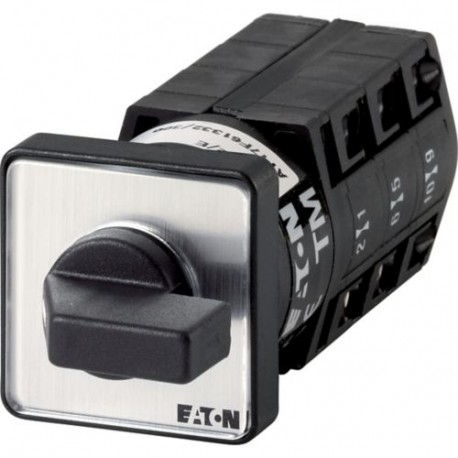

TM-3-8243/E 079624 Y7-79624 EATON ELECTRIC Step switches, Contacts: 5, 10 A, front plate: 0-5, 30 °, 5 steps..
TM-3-8243/E
079624
Y7-79624
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Eaton Moeller TM-3-8243/E step switch functions as a compact rotary control device utilized to select specific operational steps or input stages in control engineering. These instruments facilitate precise manual switching across distinct electrical tiers within control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 1
- Max. rated operation voltage Ue AC (EF007355): 500 V
- Rated permanent current Iu (EF001389): 10 A
- Number of switch positions (EF000231): 6
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 30x30 mm
More info
▲General specifications
Certified by UL for use in Canada
CSA-C22.2 No. 94
UL
UL 508
UL report applies to both US and Canada
CSA-C22.2 No. 14-05
IEC/EN 60947-3
IEC/EN 60947
VDE 0660
CE
UL File No.: E36332
CSA
IEC/EN 60947-5-1
