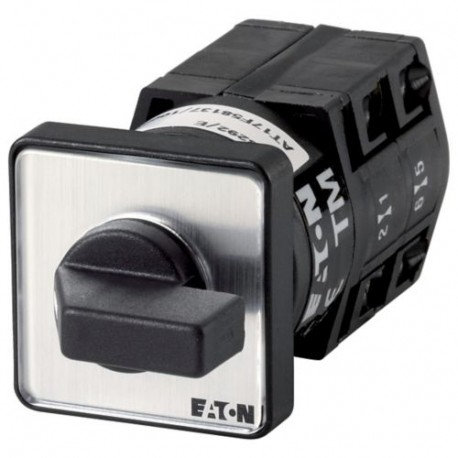

EATON - MOELLER TM-2-8241/E TM-2-8241/E 065386 Y7-65386 EATON ELECTRIC Step switches, Contacts: 3, 10 A, front plate: 0-3, 45 °, 3 steps.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-8241/E 065386 Y7-65386 EATON ELECTRIC Step switches, Contacts: 3, 10 A, front plate: 0-3, 45 °, 3 steps..

TM-2-8241/E

065386

Y7-65386

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 3, 10 A, front plate: 0-3, 45 °, 3 steps, 45°, maintained, flush mounting Step switch 3 poles 10 A Indicator plate: 0-3 45° Eaton Moeller® series TM Step switches, TM, 10 A, flush mounting, 2 contact unit(s), Contacts: 3, 45 °, maintained, With 0 (Off) position, 0-3, Design number 8241 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 3, Number of steps: 3 steps, 45°, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: 0-3

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part TM-2-8241/E is a step switch used in electrical installations to manually cycle through distinct operational stages or circuits in sequential automation tasks. These compact rotary switches are commonly integrated into control desks and machinery switchboards for multi-step regulation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 4
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 30x30 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Step switch
Catalog Number
065386
Model Code
TM-2-8241/E
EAN
4015080653868
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.038 kg
Certifications
UL 508
UL File No.: E36332
UL Category Control No.: NLRV
CSA
UL report applies to both US and Canada
Certified by UL for use in Canada
IEC/EN 60947
IEC/EN 60947-5-1
UL
CSA-C22.2 No. 14-05
IEC/EN 60947-3
CE
VDE 0660
CSA-C22.2 No. 94
