> EATON - MOELLER > Disconnectors and Cam Switches > 084370

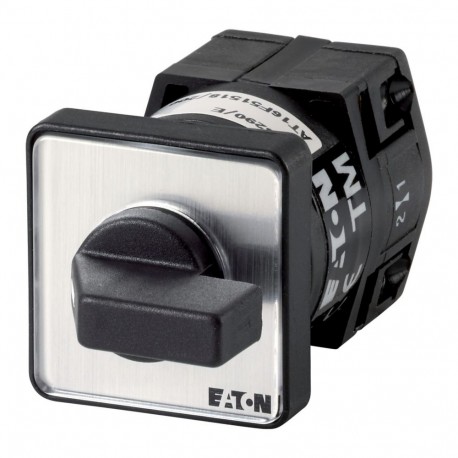

EATON - MOELLER TM-1-8310/E TM-1-8310/E 084370 Y7-84370 EATON ELECTRIC Step switches, Contacts: 2, 10 A, front plate: 0-1-2, 60 °, maint.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-1-8310/E 084370 Y7-84370 EATON ELECTRIC Step switches, Contacts: 2, 10 A, front plate: 0-1-2, 60 °, maint..

TM-1-8310/E

084370

Y7-84370

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 2, 10 A, front plate: 0-1-2, 60 °, maintained, flush mounting Step Switch 2 Pole 10 A Indicator Plate: 0-1-2 60° Eaton Moeller® series TM Step switches, TM, 10 A, flush mounting, 1 contact unit(s), Contacts: 2, 60 °, maintained, With 0 (Off) position, 0-1-2, Design number 8310 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: 0-1-2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Step switch
Catalog Number
084370
Model Code
TM-1-8310/E
EAN
4015080843702
Product Length/Depth
62 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.029 kg
Certifications
CSA-C22.2 No. 94
IEC/EN 60947-3
UL report applies to both US and Canada
Certified by UL for use in Canada
UL Category Control No.: NLRV
UL 508
CE
UL File No.: E36332
IEC/EN 60947-5-1
UL
CSA
IEC/EN 60947
CSA-C22.2 No. 14-05
VDE 0660

ETIM for 084370 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) Level switch
Number of poles (EF001391) 1
Max. rated operation voltage Ue AC (EF007355) 500 V
Rated permanent current Iu (EF001389) 10 A
Number of switch positions (EF000231) 3
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Device construction (EF008240) Built-in device
Width in number of modular spacings (EF002950) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Type of control element (EF006976) Toggle
Front shield size (EF007176) 30x30 mm
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
