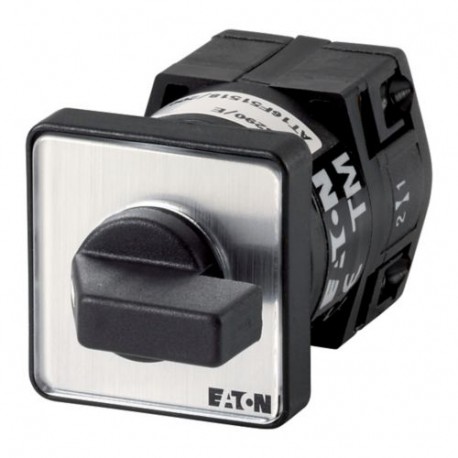

EATON - MOELLER TM-1-8240/E TM-1-8240/E 058267 Y7-58267 EATON ELECTRIC Step switches, Contacts: 2, 10 A, front plate: 0-1-2, 60 °, 2 ste.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-1-8240/E 058267 Y7-58267 EATON ELECTRIC Step switches, Contacts: 2, 10 A, front plate: 0-1-2, 60 °, 2 ste..

TM-1-8240/E

058267

Y7-58267

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 2, 10 A, front plate: 0-1-2, 60 °, 2 steps, 60°, maintained, flush mounting Step Switch 2 Pole 10 A Indicator Plate: 0-1-2 60° Eaton Moeller® series TM Step switches, TM, 10 A, flush mounting, 1 contact unit(s), Contacts: 2, 60 °, maintained, With 0 (Off) position, 0-1-2, Design number 8240 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 2, Number of steps: 2 steps, 60°, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: 0-1-2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller TM-1-8240/E step switch is a compact manual switching component commonly integrated into electrical enclosures to govern localized operational sequences. These versatile switches provide reliable circuit routing for low-current applications in automated environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 30x30 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Step switch
Catalog Number
058267
Model Code
TM-1-8240/E
EAN
4015080582670
Product Length/Depth
62 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.029 kg
Certifications
IEC/EN 60947-5-1
Certified by UL for use in Canada
CSA-C22.2 No. 14-05
IEC/EN 60947
CSA-C22.2 No. 94
UL 508
UL Category Control No.: NLRV
UL report applies to both US and Canada
UL File No.: E36332
VDE 0660
UL
CE
IEC/EN 60947-3
CSA
