EATON - MOELLER T5-4-8234/E T5-4-8234/E 096006 Y7-96006 EATON ELECTRIC Step switches, Contacts: 7, 100 A, front plate: 1-7, 45 °, mainta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-4-8234/E 096006 Y7-96006 EATON ELECTRIC Step switches, Contacts: 7, 100 A, front plate: 1-7, 45 °, mainta..

T5-4-8234/E

096006

Y7-96006

EATON - MOELLER

1 Pcs.

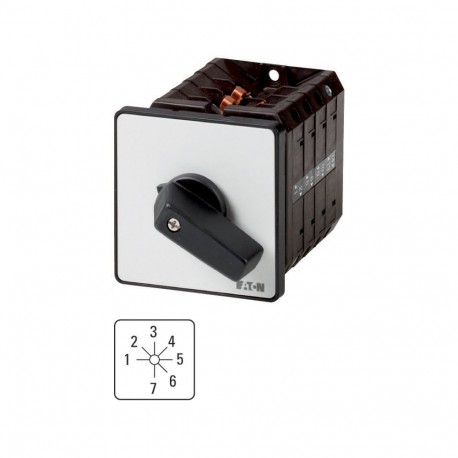

Step switches, Contacts: 7, 100 A, front plate: 1-7, 45 °, maintained, flush mounting Step switch; 7 poles; 100 A; Indicator plate: 1-7; 45 °; Eaton Moeller® series T5 Step switches, T5, 100 A, flush mounting, 4 contact unit(s), Contacts: 7, 45 °, maintained, With 0 (Off) position, 1-7, Design number 8234 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T5, with black thumb grip and front plate, Contacts: 7, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 4 contact unit(s), Rated uninterrupted current: Iu= 100 A, front plate: 1-7

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A step switch operates as a high-capacity level switch designed to control multi-stage electrical loads and complex circuit selections in industrial machinery. These heavy-duty components ensure reliable manual staging of high-current equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 600 V
  • Rated permanent current Iu (EF001389): 100 A
  • Number of switch positions (EF000231): 7
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 88x88 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Step switch
Catalog Number
096006
Model Code
T5-4-8234/E
EAN
4015080960065
Product Length/Depth
141 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.725 kg
Certifications
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
