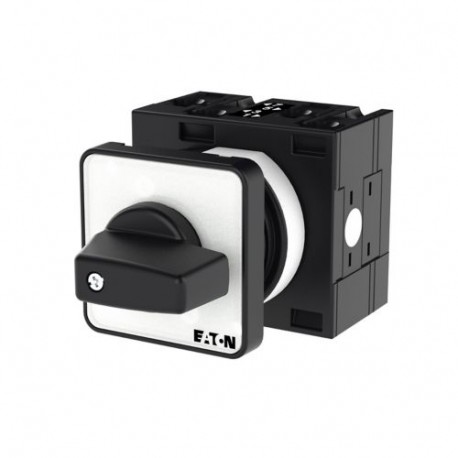

T3-2-8231/E 083221 Y7-83221 EATON ELECTRIC Step switches, Contacts: 4, 32 A, front plate: 1-4, 45 °, maintai..
T3-2-8231/E
083221
Y7-83221
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller T3-2-8231/E step switch is a mechanical control device used to manually select operating states or circuit paths in industrial machinery and electrical distribution panels. These components provide reliable switching operations across multiple positions for process control.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Number of switch positions (EF000231): 4
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
IEC/EN 60204
VDE 0660
UL File No.: E36332
UL 60947-4-1
IEC/EN 60947-3
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
IEC/EN 60947
CE
CSA
UL
