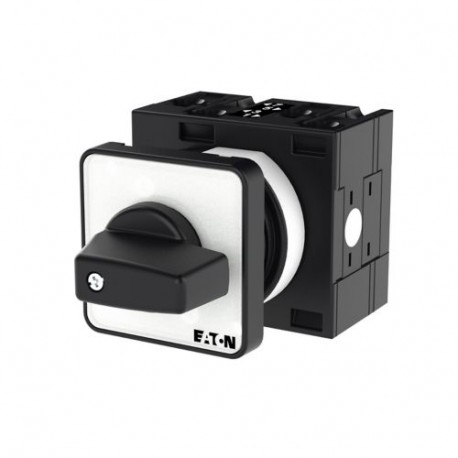

T3-2-8242/E 021523 Y7-21523 EATON ELECTRIC Step switches, Contacts: 4, 32 A, front plate: 0-4, 45 °, maintai..
T3-2-8242/E
021523
Y7-21523
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller T3-2-8242/E is a step switch engineered to handle higher current loads while stepping industrial equipment through multiple sequence positions. Step switches are essential for manual phase control and load staging in electrical enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Number of switch positions (EF000231): 5
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
CSA Class No.: 3211-05
IEC/EN 60947
UL
VDE 0660
IEC/EN 60947-3
CSA
CSA File No.: 012528
IEC/EN 60204
UL 60947-4-1
CE
UL Category Control No.: NLRV
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
