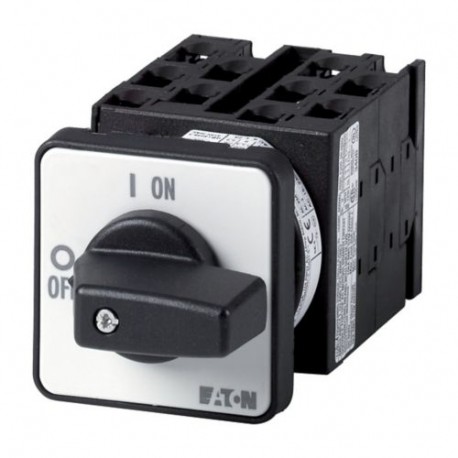

EATON - MOELLER T0-5-8236/E T0-5-8236/E 014687 Y7-14687 EATON ELECTRIC Step switches, Contacts: 9, 20 A, front plate: 1-9, 30 °, maintai.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-5-8236/E 014687 Y7-14687 EATON ELECTRIC Step switches, Contacts: 9, 20 A, front plate: 1-9, 30 °, maintai..

T0-5-8236/E

014687

Y7-14687

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 9, 20 A, front plate: 1-9, 30 °, maintained, flush mounting Step switch; 9 poles; 20 A; Indicator plate: 1-9; 30 °; Flush mounting Eaton Moeller® series T0 Step switches, T0, 20 A, flush mounting, 5 contact unit(s), Contacts: 9, 30 °, maintained, Without 0 (Off) position, 1-9, Design number 8236 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 9, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 30 °, Switching performance: maintained, Without 0 (Off) position, 5 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1-9

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A step switch from Eaton Moeller, designated as T0-5-8236/E, is an electromechanical control device used to manually step through multiple distinct circuits or operational stages in industrial machinery. These selector mechanisms are commonly installed in control enclosures to manage multi-tiered processes.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 9
  • With zero (off) position (EF001416): false
  • With retraction in 0-position (EF002428): false
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): false
  • Suitable for front mounting (EF007246): true
  • Suitable for distribution board installation (EF007262): false
  • Suitable for intermediate mounting (EF007264): false
  • Complete device in housing (EF007317): false
  • Type of control element (EF006976): Wing knob
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
014687
Model Code
T0-5-8236/E
EAN
4015080146872
Product Length/Depth
114 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.147 kg
Certifications
IEC/EN 60947
CSA
CSA-C22.2 No. 94
CSA Class No.: 3211-05
VDE 0660
IEC/EN 60204
UL Category Control No.: NLRV
CE
UL
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
UL 60947-4-1
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
