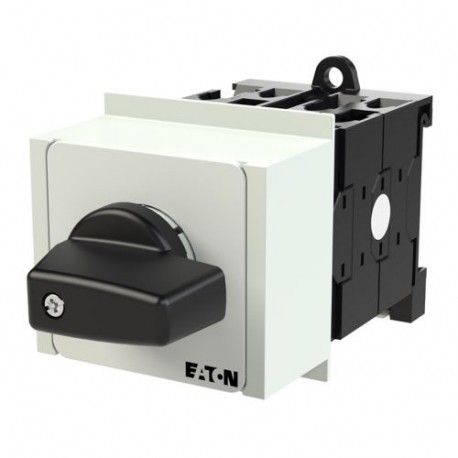

EATON - MOELLER T0-4-8235/IVS T0-4-8235/IVS 081567 Y7-81567 EATON ELECTRIC Step switches, Contacts: 8, 20 A, front plate: 1-8, 45 °, maint.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-8235/IVS 081567 Y7-81567 EATON ELECTRIC Step switches, Contacts: 8, 20 A, front plate: 1-8, 45 °, maint..

T0-4-8235/IVS

081567

Y7-81567

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 8, 20 A, front plate: 1-8, 45 °, maintained, service distribution board mounting Step Switch 8 Pole 20 A Indicator Plate: 1-8 45° Eaton Moeller® series T0 Step switches, T0, 20 A, service distribution board mounting, 4 contact unit(s), Contacts: 8, 45 °, maintained, Without 0 (Off) position, 1-8, Design number 8235 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 45 °, Switching performance: maintained, Without 0 (Off) position, 4 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1-8

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T0-4-8235/IVS step switch provides multi-position circuit selection for managing sequential operations or multi-tap transformer configurations in industrial electrical panels. These selector mechanisms allow operators to transition reliably between different operational stages during routine process control.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 8
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 4
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
081567
Model Code
T0-4-8235/IVS
EAN
4015080815679
Product Length/Depth
111 mm
Product Height
5 mm
Product Width
54 mm
Product Weight
0.179 kg
Certifications
CSA File No.: 012528
CSA Class No.: 3211-05
CSA-C22.2 No. 94
IEC/EN 60947
UL 60947-4-1
IEC/EN 60947-3
UL
CSA
UL Category Control No.: NLRV
VDE 0660
UL File No.: E36332
IEC/EN 60204
CE
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
