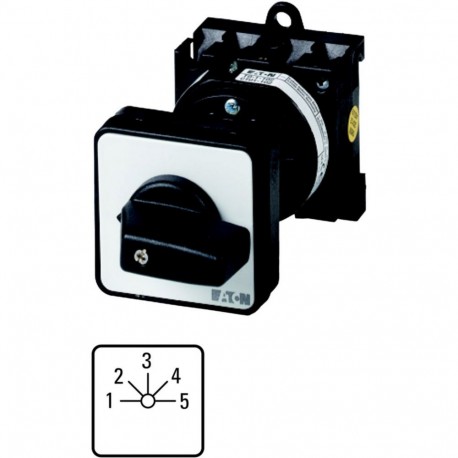

EATON - MOELLER T0-3-8232/Z T0-3-8232/Z 036480 Y7-36480 EATON ELECTRIC Step switches, Contacts: 5, 20 A, front plate: 1-5, 45 °, 5 steps.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-8232/Z 036480 Y7-36480 EATON ELECTRIC Step switches, Contacts: 5, 20 A, front plate: 1-5, 45 °, 5 steps..

T0-3-8232/Z

036480

Y7-36480

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 5, 20 A, front plate: 1-5, 45 °, 5 steps, 45°, maintained, rear mounting Step switch 5 poles 20 A Indicator plate: 1-5 45° Eaton Moeller® series T0 Step switches, T0, 20 A, rear mounting, 3 contact unit(s), Contacts: 5, 45 °, maintained, Without 0 (Off) position, 1-5, Design number 8232 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 5, Number of steps: 5 steps, 45°, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: maintained, Without 0 (Off) position, 3 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1-5

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

T0-3-8232/Z 036480 Y7-36480 EATON ELECTRIC Step switches, Contacts: 5, 20 A, front plate: 1-5, 45 °, 5 steps.. functions as a multi-step rotary control switch designed for selecting sequential operational stages within industrial machinery and power distribution setups. Engineers rely on these robust devices for manual process adjustments and circuit routing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 5
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
036480
Model Code
T0-3-8232/Z
EAN
4015080364801
Product Length/Depth
137 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.163 kg
Certifications
CSA-C22.2 No. 94
UL File No.: E36332
CE
UL 60947-4-1
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
CSA Class No.: 3211-05
UL
CSA
CSA File No.: 012528
UL Category Control No.: NLRV
IEC/EN 60204
IEC/EN 60947-3
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
