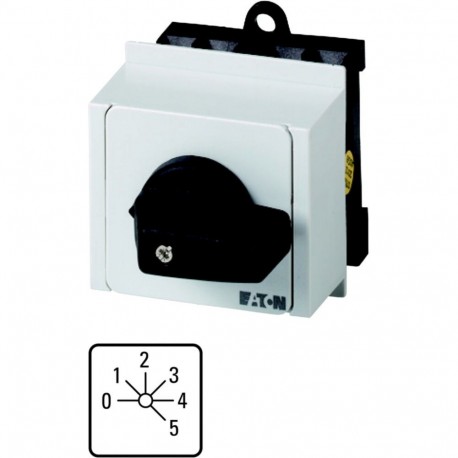

T0-3-8243/IVS 088684 Y7-88684 EATON ELECTRIC Step switches, Contacts: 5, 20 A, front plate: 0-5, 45 °, 5 ste..
T0-3-8243/IVS
088684
Y7-88684
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller T0-3-8243/IVS step switches are manual control devices used to select operational sequences, circuits, or multi-step processes within industrial control panels. These components route power across defined terminal stages to govern machinery behavior based on operator input.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 6
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 4
- Suitable for floor mounting (EF007243): Yes
- Suitable for front mounting (EF007246): No
- Suitable for distribution board installation (EF007262): Yes
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
UL 60947-4-1
IEC/EN 60204
VDE 0660
CSA
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA File No.: 012528
CE
IEC/EN 60947-3
UL
UL File No.: E36332
