View larger
Images are for illustrative purposes only. Please refer to data sheet for details

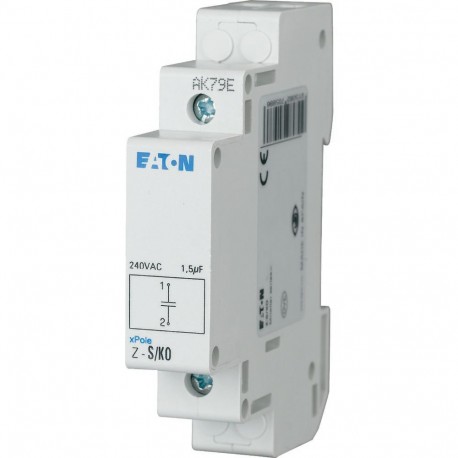

Z-S/KO 270588 Y7-270588 EATON ELECTRIC Capacitor block, 1, 5 microfarads, 240V AC
Z-S/KO
270588
Y7-270588
EATON - MOELLER
1 Pcs.
Capacitor block, 1, 5 microfarads, 240V AC
Z-S/KO
Capacitor block (compensator), 1.5µF, 240V AC, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting
Automation > Capacitor
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Capacitor block, 1, 5 microfarads, 240V AC
Capacitor block (compensator), 1.5µF, 240V AC, standard front dimension 45 mm, mounting width 1 SU (17.5mm), top-hat rail mounting
General specifications
Product name
Eaton Distribution parts
Part no.
Z-S/KO
EAN
4015082705886
Product Length/Depth
80 millimetre
Product height
65.5 millimetre
Product width
17.5 millimetre
Product weight
0.065 kilogram
Compliances
RoHS conform
Product Tradename
None
Product Type
Distribution parts
Product Sub Type
None
Public Consumption
Yes
Product Family Description
ES-PMCC-PDC-Eaton Distribution parts
Globally Marketable
Yes
Product Specification Details
Capacitor diameter
13 mm
Capacity
1.5 µF
Capacity 2
0 µF
Model
Parallel capacitor for L-lamp
Nominal voltage - max
240 V
Nominal voltage - min
240 V
Technical data ETIM 9.0
Low-voltage industrial components (EG000017) / Capacitor (EC001516)
Electric engineering, automation, process control engineering / Component (electronic) / Capacitor / Capacitor (unspecified) (ecl@ss13-27-26-02-90 [ACN774015])
Capacity
1.5 µF
Capacity 2
0 µF
Nominal voltage
240 - 240 V
Model
Parallel capacitor for L-lamp
With insert contacts
No
Diameter
13 mm
Length
80 mm
Width
17.5 mm
Depth
80 mm
| Feature Name | Feature Value |
|---|---|
| Capacity (EF000364) | 1.5 µF |
| Capacity 2 (EF012194) | 0 µF |
| Nominal voltage (EF005127) | 240 V |
| Model (EF000010) | Parallel capacitor for L-lamp |
| With insert contacts (EF003783) | No |
| Diameter (EF000551) | 13 mm |
| Length (EF001438) | 80 mm |
| Width (EF000008) | 17.5 mm |
| Depth (EF000049) | 80 mm |
