View larger
Images are for illustrative purposes only. Please refer to data sheet for details

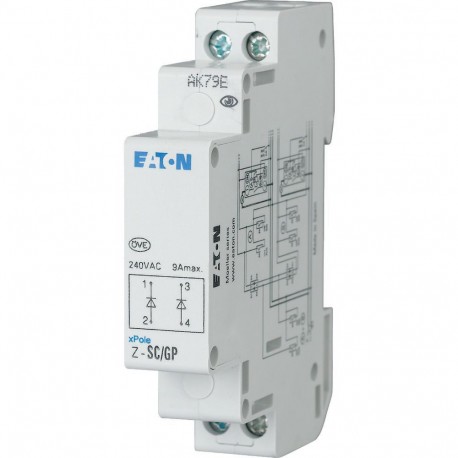

Z-SC/GP 270587 Y7-270587 EATON ELECTRIC Diode group block, 1HP
Z-SC/GP
270587
Y7-270587
EATON - MOELLER
1 Pcs.
Diode group block, 1HP
Z-SC/GP
Eaton Distribution parts. Diode group block, 1HP
Automation > Auxiliary device for distribution board devices
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Distribution parts
Catalog Number
270587
Model Code
Z-SC/GP
EAN
4015082705879
Product Length/Depth
80 mm
Product Height
65.5 mm
Product Width
17.5 mm
Product Weight
0.07 kg
Compliances
RoHS conform
Product specifications
Voltage type
AC
Functions
Other
Additional equipment required
Other
Assembly width
1 TE
Main contact unit current rating - max
0 A
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
0
Number of poles at main contact unit - max
0
Number of switches (fault signal)
0
Rated operational voltage (Ue) - max
0 V
Rated switch current
0 A
Device fitting
Auxiliary switch / relay
| Feature Name | Feature Value |
|---|---|
| Device fitting (EF007826) | Auxiliary switch / relay |
| Function (EF000030) | Other |
| Width in number of modular spacings (EF002950) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of fault-signal switches (EF007613) | 0 |
| Rated switch current (EF006706) | 0 A |
| Rated voltage (EF000228) | 0 V |
| Voltage type (EF000187) | AC |
| With auto test for earth leakage function (EF008727) | No |
| Suitable for max. number of poles main contact unit (total) (EF008729) | 0 |
| Suitable for max. current main contact unit (EF008730) | 0 A |
