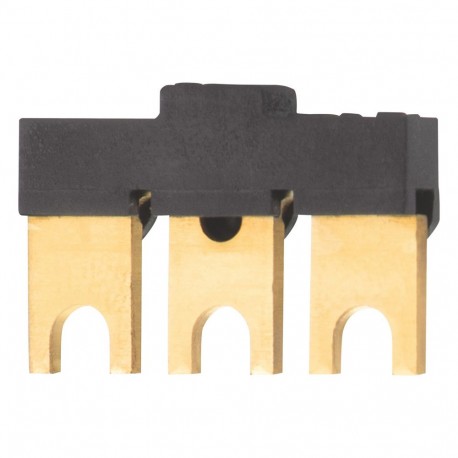

EATON - MOELLER S1DILEM S1DILEM 220218 Y7-220218 EATON ELECTRIC 220218 S1DILEM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

S1DILEM 220218 Y7-220218 EATON ELECTRIC 220218 S1DILEM

S1DILEM

220218

Y7-220218

EATON - MOELLER

20 Pcs.

220218 S1DILEM S1DILEM Eaton Moeller® series DILEM Star-point bridge, For use with DILEEM, DILEM12, DILEM Star-point bridge, Stat-point bridge, For use with: DILEEM, DILEM12, DILEM

Automation > Accessories/spare parts for low-voltage switch technology
Contactors up to 170A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller S1DILEM 220218 Y7-220218 EATON ELECTRIC 220218 S1DILEM functions as an electrical connecting bridge designed to link modular control components. Jumper bridges and links streamline wiring workflows in control cabinets by joining adjacent terminal points without individual jumper wires.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of accessory/spare part (EF000215): Connecting bridge
  • Accessory (EF013236): Yes
  • Spare part (EF013237): No

More info

▲

General specifications

Product Name
Eaton Moeller® series DILEM Accessory Star-point bridge
Catalog Number
220218
Model Code
S1DILEM
EAN
4015082202187
Product Length/Depth
25 mm
Product Height
5 mm
Product Width
17 mm
Product Weight
0.003 kg
Certifications
UL/CSA certification not required

General

Accessory/spare part type
Connecting bridge
Product category
Accessories
Protection
Protected against accidental contact in accordance to VDE 0106 part 100

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
22 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
