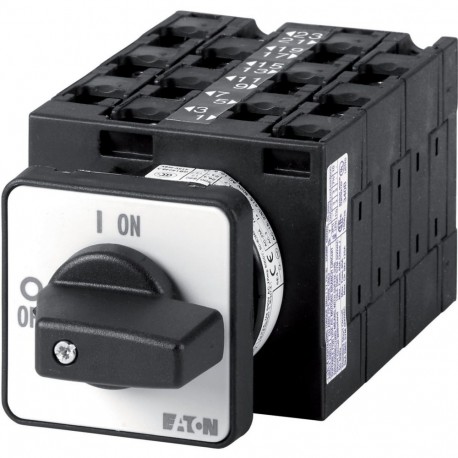

EATON - MOELLER T3-6-15893/E T3-6-15893/E 004342 Y7-4342 EATON ELECTRIC Star-delta switches, Contacts: 11, 32 A, front plate: B 0-Y-D, 60.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-6-15893/E 004342 Y7-4342 EATON ELECTRIC Star-delta switches, Contacts: 11, 32 A, front plate: B 0-Y-D, 60..

T3-6-15893/E

004342

Y7-4342

EATON - MOELLER

1 Pcs.

Star-delta switches, Contacts: 11, 32 A, front plate: B>0-Y-D, 60 °, momentary/maintained, flush mounting, SOND 29 Switch Star-Triangle; 11-pole; 32; Plate indicator: B>0-And-D; 60 °; - Return/Latching; flush Mount; SOND 29 Eaton Moeller® series T3 Star-delta switches, T3, 32 A, flush mounting, 6 contact unit(s), Contacts: 11, 60 °, momentary/maintained, With 0 (Off) position, With spring-return to 0, B>0-Y-D, SOND 29, Design number 15893 Star-delta switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Notes: SOND 29, Contacts: 11, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: momentary/maintained, With 0 (Off) position, With spring-return to 0, front plate: B>0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller T3-6-15893/E star-delta switch is utilized in industrial automation for managing motor startup sequences by reducing inrush current. These specialized rotary switches facilitate the transition of three-phase motors from star to delta configuration once running speed is achieved, protecting electrical infrastructure from excessive current spikes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Star-delta switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 18.5 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Star-delta switch
Catalog Number
004342
Model Code
T3-6-15893/E
EAN
4015080043423
Product Length/Depth
137 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.332 kg
Certifications
VDE 0660
CSA-C22.2 No. 60947-4-1-14
UL
UL 60947-4-1
CSA
IEC/EN 60204
UL File No.: E36332
CSA File No.: 012528
CSA-C22.2 No. 94
IEC/EN 60947-3
UL Category Control No.: NLRV
CE
IEC/EN 60947
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
