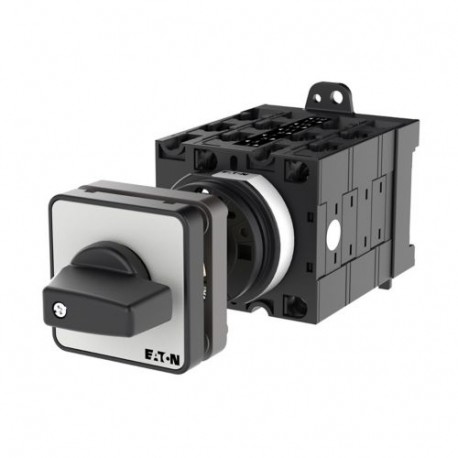

EATON - MOELLER T3-5-15899/Z T3-5-15899/Z 004121 Y7-4121 EATON ELECTRIC Star-delta switches, Contacts: 10, 32 A, front plate: 0-Y-D, 60 °.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-5-15899/Z 004121 Y7-4121 EATON ELECTRIC Star-delta switches, Contacts: 10, 32 A, front plate: 0-Y-D, 60 °..

T3-5-15899/Z

004121

Y7-4121

EATON - MOELLER

1 Pcs.

Star-delta switches, Contacts: 10, 32 A, front plate: 0-Y-D, 60 °, maintained, rear mounting, SOND 28 Switch Star-Triangle; 10-pole; 32; Plate indicator: 0 -, And-D; 60 °; Interlocking; Installation bottom panel; SOND 28 Eaton Moeller® series T3 Star-delta switches, T3, 32 A, rear mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, With 0 (Off) position, 0-Y-D, SOND 28, Design number 15899 Star-delta switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Notes: SOND 28, Contacts: 10, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Star-delta switch
Catalog Number
004121
Model Code
T3-5-15899/Z
EAN
4015080041214
Product Length/Depth
167 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.29 kg
Certifications
CE
IEC/EN 60204
VDE 0660
CSA
CSA File No.: 012528
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
UL
UL File No.: E36332
CSA-C22.2 No. 94
IEC/EN 60947-3
UL 60947-4-1
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 004121 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) Star-delta switch
Number of poles (EF001391) 3
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Rated permanent current Iu (EF001389) 32 A
Rated operation current Ie at AC-3, 400 V (EF001392) 23.7 A
Rated operation power at AC-3, 400 V (EF001364) 18.5 kW
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) Yes
Suitable for front mounting (EF007246) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) Yes
Complete device in housing (EF007317) No
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection
