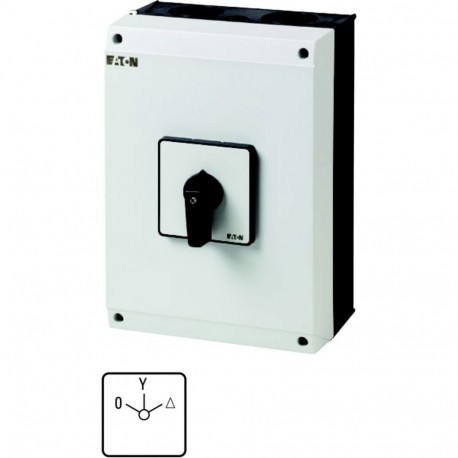

EATON - MOELLER T5-4-8410/I5 T5-4-8410/I5 222918 Y7-222918 EATON ELECTRIC Star-delta switches, Contacts: 8, 100 A, front plate: 0-Y-D, 60.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-4-8410/I5 222918 Y7-222918 EATON ELECTRIC Star-delta switches, Contacts: 8, 100 A, front plate: 0-Y-D, 60..

T5-4-8410/I5

222918

Y7-222918

EATON - MOELLER

1 Pcs.

Star-delta switches, Contacts: 8, 100 A, front plate: 0-Y-D, 60 °, maintained, surface mounting T5-4-8410/I5 Eaton Moeller® series T5 Star-delta switches, T5, 100 A, surface mounting, 4 contact unit(s), Contacts: 8, 60 °, maintained, With 0 (Off) position, 0-Y-D, Design number 8410 Star-delta switch, Product range: Control switches, Part group reference: T5, with black thumb grip and front plate, Contacts: 8, Degree of Protection: IP65, Design: surface mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T5-4-8410/I5 star-delta switch provides robust motor control for managing heavy electrical loads and lowering starting currents in industrial plants. This housing-enclosed unit is typically deployed alongside heavy machinery to ensure secure operational transitions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Star-delta switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 100 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 55 A
  • Rated operation power at AC-3, 400 V (EF001364): 45 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): Yes
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Insulated enclosure
Catalog Number
222918
Model Code
T5-4-8410/I5
EAN
4015082229184
Product Length/Depth
280 mm
Product Height
197 mm
Product Width
200 mm
Product Weight
2.238 kg
Certifications
IEC/EN 60204
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
