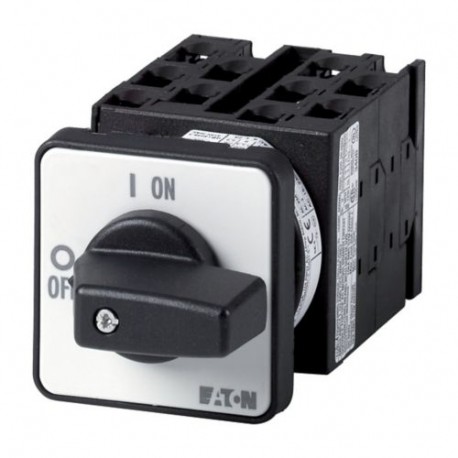

EATON - MOELLER T0-5-25/E T0-5-25/E 014605 Y7-14605 EATON ELECTRIC Star-delta switches, Contacts: 9, 20 A, front plate: 0-Y-D, 60 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-5-25/E 014605 Y7-14605 EATON ELECTRIC Star-delta switches, Contacts: 9, 20 A, front plate: 0-Y-D, 60 °, m..

T0-5-25/E

014605

Y7-14605

EATON - MOELLER

1 Pcs.

Star-delta switches, Contacts: 9, 20 A, front plate: 0-Y-D, 60 °, maintained, flush mounting, SOND 29 Star-Triangle switch; 9 poles; 20 A; Indicator plate: 0-Y-D; 60 °; Flush mounting Eaton Moeller® series T0 Star-delta switches, T0, 20 A, flush mounting, 5 contact unit(s), Contacts: 9, 60 °, maintained, With 0 (Off) position, 0-Y-D, SOND 29, Design number 25 Star-delta switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Notes: SOND 29, Contacts: 9, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Star-delta switches such as the Eaton Moeller T0-5-25/E reduce starting current surges in large induction motors by transitioning windings from star to delta configuration during startup. This protects the wider electrical infrastructure from high inrush currents.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Star-delta switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Star-delta switch
Catalog Number
014605
Model Code
T0-5-25/E
EAN
4015080146056
Product Length/Depth
114 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.147 kg
Certifications
VDE 0660
IEC/EN 60947-3
IEC/EN 60204
CE
CSA
IEC/EN 60947
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
CSA-C22.2 No. 94
UL
UL Category Control No.: NLRV
CSA File No.: 012528
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
