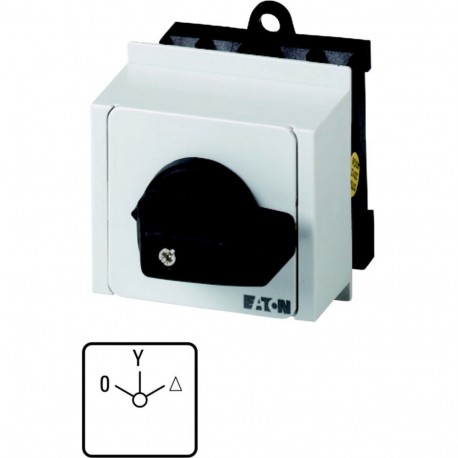

EATON - MOELLER T0-4-8410/IVS T0-4-8410/IVS 064945 Y7-64945 EATON ELECTRIC Star-delta switches, Contacts: 8, 20 A, front plate: 0-Y-D, 60 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-8410/IVS 064945 Y7-64945 EATON ELECTRIC Star-delta switches, Contacts: 8, 20 A, front plate: 0-Y-D, 60 ..

T0-4-8410/IVS

064945

Y7-64945

EATON - MOELLER

1 Pcs.

Star-delta switches, Contacts: 8, 20 A, front plate: 0-Y-D, 60 °, maintained, service distribution board mounting Star-Triangle Switch 8 poles 20 A Indicator plate: 0-Y-D Eaton Moeller® series T0 Star-delta switches, T0, 20 A, service distribution board mounting, 4 contact unit(s), Contacts: 8, 60 °, maintained, With 0 (Off) position, 0-Y-D, Design number 8410 Star-delta switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-4-8410/IVS is a specialized star-delta switch designed to manage motor startup transitions by stepping down initial electrical inrush currents. These mechanical switching components are standard in motor control applications to safeguard mechanical drivetrains and electrical grids.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Star-delta switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Degree of protection (IP), front side (EF003118): IP30
  • Degree of protection (NEMA), front side (EF011961): 2
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Star-delta switch
Catalog Number
064945
Model Code
T0-4-8410/IVS
EAN
4015080649458
Product Length/Depth
111 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.179 kg
Certifications
UL 60947-4-1
CE
IEC/EN 60947
UL File No.: E36332
IEC/EN 60204
UL Category Control No.: NLRV
VDE 0660
CSA Class No.: 3211-05
CSA-C22.2 No. 94
IEC/EN 60947-3
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
UL
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
