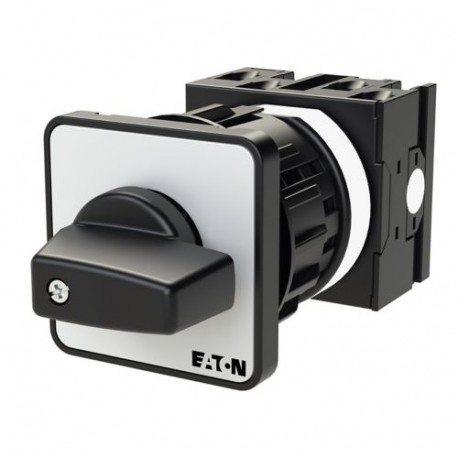

EATON - MOELLER T0-2-99/EZ T0-2-99/EZ 012248 Y7-12248 EATON ELECTRIC Spring-return switch, Contacts: 4, 20 A, front plate: START 2-0-1 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-99/EZ 012248 Y7-12248 EATON ELECTRIC Spring-return switch, Contacts: 4, 20 A, front plate: START 2-0-1 ..

T0-2-99/EZ

012248

Y7-12248

EATON - MOELLER

1 Pcs.

Spring-return switch, Contacts: 4, 20 A, front plate: START>2-0-1 Switch with return; 4 pole; 20a; rating Plate: START>2-0-1 Eaton Moeller® series T0 Spring-return switch, T0, 20 A, center mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary/maintained, With 0 (Off) position, with spring-return from both directions, START>2-0-1 Spring-return switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: momentary/maintained, With 0 (Off) position, with spring-return from both directions, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: START>2-0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Configured for specialized control applications, the Eaton Moeller T0-2-99/EZ functions as a multi-position spring-return switch. These components are typically selected for control desks and automation panels where operators need to trigger specific temporary states before the switch returns to a neutral baseline.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 4
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 5
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Spring-return switch
Catalog Number
012248
Model Code
T0-2-99/EZ
EAN
4015080122487
Product Length/Depth
106 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.124 kg
Certifications
UL 60947-4-1
IEC/EN 60204
VDE 0660
CE
IEC/EN 60947-3
CSA File No.: 012528
CSA-C22.2 No. 94
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
CSA
CSA Class No.: 3211-05
UL
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
