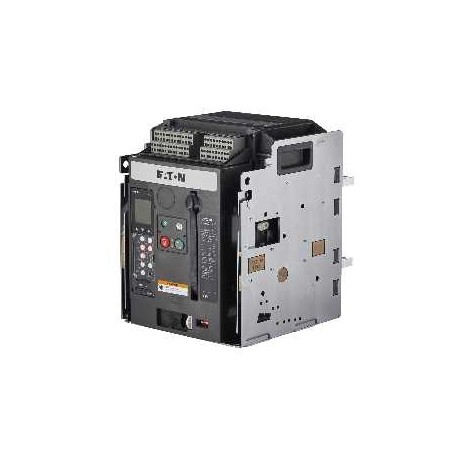

EATON - MOELLER +IZM-SR48DC +IZM-SR48DC 122745 EATON ELECTRIC Spring release, 48VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZM-SR48DC 122745 EATON ELECTRIC Spring release, 48VDC

+IZM-SR48DC

122745

EATON - MOELLER

1 Pcs.

Spring release, 48VDC Closing release, Accessories, 4000 to 6300 A, Voltage release, Closing releases, Standard/Approval: IEC, A closing release can be combined with a shunt release and an undervoltage release or with an undervoltage release or with a second shunt release., Rated control voltage: Us 48 DC V, For use with: IZM20, 32, 40, 63…, IN20, 32,40, 63…, If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required. Terminal assignment page 71

Automation > Shunt release (for power circuit breaker)
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Spring release, 48VDC
Closing release, Accessories, 4000 to 6300 A, Voltage release, Closing releases, Standard/Approval: IEC, A closing release can be combined with a shunt release and an undervoltage release or with an undervoltage release or with a second shunt release., Rated control voltage: Us 48 DC V, For use with: IZM20, 32, 40, 63…, IN20, 32,40, 63…, If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required. Terminal assignment page 71
[

Delivery program

Product range
Accessories
Current Range
4000 to 6300 A
Accessories
Voltage release
Accessories
Closing releases
Standard/Approval
IEC
A closing release can be combined with a shunt release and an undervoltage release or with an undervoltage release or with a second shunt release.
Rated control voltage [Us]
48 DC V
For use with
IZM20, 32, 40, 63…
IN20, 32,40, 63…
Instructions
If ordered separately a secondary terminal unit IZM‐SEC‐… is necessary for connection. Order separately if required. Terminal assignment page 71
,

Technical data

Rated control voltage [Us]
DC [Us]
48 V
Power consumption
DC
(pick-up 250) W
Circuit-breaker response time at Us
40 ms
Operating range
Pick-up voltage [Pick-up]
According to the IEC standard x Uc
,

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
]

ETIM for 122745 Low-voltage industrial controls and switchgear (EC001023)
Feature Name Feature Value
Suitable for power circuit breaker (EF005863) No
Suitable for off-load switch (EF001543) No
Suitable for motor safety switch (EF005826) No
Suitable for overload relay (EF001545) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
