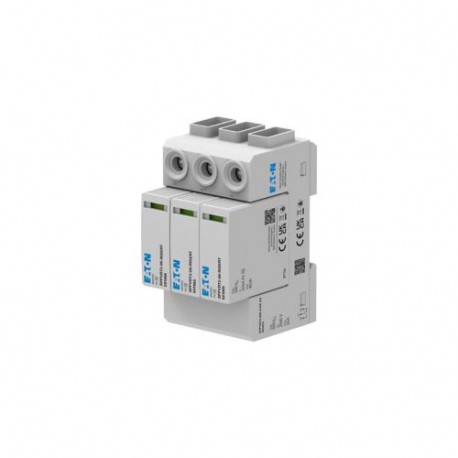

EATON - MOELLER SPPVRT2-600-2+PE SPPVRT2-600-2+PE EP-501972 Y7-501972 EATON ELECTRIC PV-SPD, 600V, Class 2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPPVRT2-600-2+PE EP-501972 Y7-501972 EATON ELECTRIC PV-SPD, 600V, Class 2

SPPVRT2-600-2+PE

EP-501972

Y7-501972

EATON - MOELLER

1 Pcs.

PV-SPD, 600V, Class 2 PV-Surge protection device, 600V, class 2 tested SPD for the protection of PV installations on the DC side, to be used in accordance with IEC/EN 60364-5-53

Automation > Surge protection device for power supply systems
Modular Switchgear – Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton xPole SPPVR surge protection device
Catalog Number
EP-501972
Model Code
SPPVRT2-600-2+PE
EAN
9010653062936
Product Length/Depth
104 mm
Product Height
60 mm
Product Width
54 mm
Product Weight
0.247 kg
Certifications
CE

Technical data - electrical

Voltage protection level
2.5 KV
Nominal voltage at DC
600 V
Continuous voltage at DC - max
600 V
PV-voltage - max
600 V
Nominal discharge surge current (8/20)
20 kA
Discharge surge current (8/20) - max
40 kA
Short-circuit breaking capacity (ISCCR)
9 kA
Signalling at the device
Optic
Frame
3 modular spacing
Mounting method
DIN rail (top hat rail) 35 mm
Number of conductors without earthing
2
Conductor cross section (flexible, fine-strand) - max
25 mm²
Conductor cross section (solid, solid-strand) - max
35 mm²
Degree of protection
IP20

Additional information

Features
Category type 2
System configuration type
DC

ETIM for EP-501972 Earthing, lightning and surge protection (EC000941)
Feature Name Feature Value
System configuration DC (EF009926) Yes
System configuration IT (EF009927) No
System configuration TN (EF009928) No
System configuration TN-C (EF009929) No
System configuration TN-C-S (EF009933) No
System configuration TN-S (EF009930) No
System configuration TT (EF009931) No
System configuration other (EF009932) No
Number of conductors (without earthing) (EF001148) 2
Nominal discharge surge current (8/20) (EF004214) 20 kA
Max. discharge surge current (8/20) (EF012274) 40 kA
Nominal voltage DC (EF004221) 600 V
Max. continuous voltage DC (EF004777) 600 V
Max. PV-voltage (EF008795) 600 V
Voltage protection level (EF003525) 2.5 kV
Short-circuit breaking capacity (Isccr) (EF012627) 9 kA
Integrated short-circuit protection (EF016000) No
Integrated backup fuse (EF008797) No
Leakage-current free (EF016002) No
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Construction size (EF002566) 3 modular spacing
Max. conductor cross section solid (solid, stranded) (EF008827) 35 mm²
Max. conductor cross section flexible (fine-strand) (EF008828) 25 mm²
With remote signalling contact (EF000422) No
Signalling at the device (EF004241) Optic
Category type 2 (EF004230) Yes
Degree of protection (IP) (EF005474) IP20

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
