View larger
Images are for illustrative purposes only. Please refer to data sheet for details

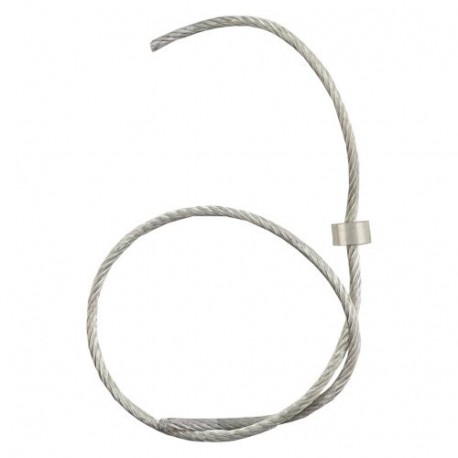

15KV 100A SOLID LINK 15SU100 EATON ELECTRIC Expulsion fuse-link, medium voltage, 100 A, AC 15 kV, 533 mm, AN..
15KV 100A SOLID LINK
15SU100
15SU100
EATON - MOELLER
10 Pcs.
Expulsion fuse-link, medium voltage, 100 A, AC 15 kV, 533 mm, ANSI, style U termination
15KV 100A SOLID LINK
15KV 100A SOLID LINK - Expulsion fuse-link, medium voltage, 100 A, AC 15 kV, 8 kA, 533 mm, ANSI, Solid link, universal with slip off NEMA button head
Fuse, Expulsion fuse-link, medium voltage, 100 A, AC 15 kV, 533 mm, ANSI, Solid link, universal with slip off NEMA button head, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA
Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
15SU100
EAN
5027590435833
Product Length/Depth
102 mm
Product Height
233 mm
Product Width
77 mm
Product Weight
26.2 g
Certifications
ANSI
Electrical data
Amperage Rating
100 A
Voltage rating
15 kV
Voltage type
AC
Current characteristic type
Type S - Solid links rated at 100A are also available in both button head and universal versions for fitting into expulsion fuse carriers where required.
Rated frequency - min
50 Hz
Product specification
Construction size
533 mm
Standard
ANSI
Type of termination
Universal
Color
None
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 100 A |
| Rated voltage (EF000228) | 15 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Release characteristic (EF000889) | Other |
| Type of termination (EF012540) | Universal |
| Standard (EF009322) | ANSI |
