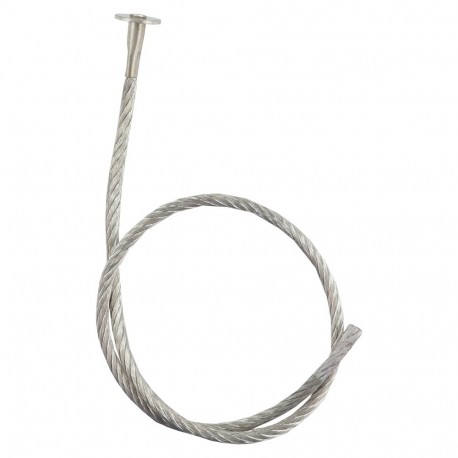

SOLID EXPUL LINK 46SB100 EATON ELECTRIC Expulsion fuse-link, medium voltage, 100 A, AC 46 kV, 787 mm, ANSI
SOLID EXPUL LINK
46SB100
EATON - MOELLER
10 Pcs.
Expulsion fuse-link, medium voltage, 100 A, AC 46 kV, 787 mm, ANSI
Ejection Fuse Cartridge, MT, 100 A, AC 46 kV, 787 mm, ANSI
Fuse, Expulsion fuse-link, medium voltage, 100 A, AC 46 kV, 787 mm, ANSI, Solid link with fixed NEMA button head, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA
Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Expulsion fuse-link, medium voltage, 100 A, AC 46 kV, 787 mm, ANSI
Fuse, Expulsion fuse-link, medium voltage, 100 A, AC 46 kV, 787 mm, ANSI, Solid link with fixed NEMA button head, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA
Delivery program
Product range
Fuse
Basic function
Expulsion fuse-link
Field of application
medium voltage
Rated current [I]
100 A
Rated voltage
AC 46 kV
Size
787 mm
Description
Solid link with fixed NEMA button head
Breaking Capacity
8 kA
usable for size/applications
protection of transformer primary side, feeder, capacitor bank
Standard/Approval
ANSI
Standards/Regulations
ANSI C37-42
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF000228) | 46 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Release characteristic (EF000889) | Other |
| Type of termination (EF012540) | Fixed buttonhead |
| Standard (EF009322) | ANSI |
