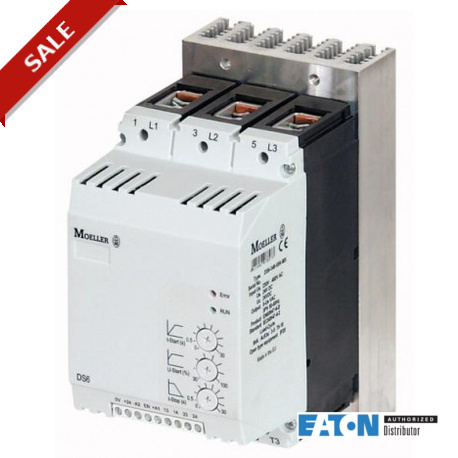

DS6-340-90K-MX 103152 EATON ELECTRIC SOFT STARTER 90KW
DS6-340-90K-MX
103152
EATON - MOELLER
1 Pcs.
Automation > Soft starter
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller electric soft starter manages motor acceleration by controlling applied voltage, protecting mechanical drives from high starting torques and minimizing electrical spikes. Such devices are widely applied in commercial and industrial settings to operate large pumps, compressors, and conveyors safely.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains supply voltage (50/60 Hz): U LN
- Supply voltage: U s
- Control voltage: U C
- at 400 V, 50 Hz: P
- at 460 V, 60 Hz: P
- AC-53: I e
- Rated operational voltage: U e
- Operation: ϑ
- Storage: ϑ
- Main conducting paths Rated operating voltage: U e
- Supply frequency: f LN
- Rated operational current: I e
- AC-53: I e
- at 230 V, 50 Hz: P
- at 400 V, 50 Hz: P
- at 230 V, 60 Hz: P
More info
▲Description | With internal bypass contacts | ||
Function | Soft starters for three-phase loads | ||
Mains supply voltage (50/60 Hz) | ULN | V AC | 230 - 480 |
Supply voltage | Us | 24 V DC | |
Control voltage | UC | 24 V DC | |
Assigned motor rating (Standard connection, In-Line) | |||
at 400 V, 50 Hz | P | kW | 90 |
at 460 V, 60 Hz | P | HP | 125 |
Rated operational current | |||
AC-53 | Ie | A | 161 |
Startup class | CLASS 10 (star-delta replacement) CLASS 20 (heavy starting duty 3 x Iefor 45 s) | ||
Rated operational voltage | Ue | 230 V 400 V 480 V |
| General | |||
Standards | IEC/EN 60947-4-2 UL 508 CSA22.2-14 GB14048 | ||
Approvals | CE | ||
Approvals | UL CSA C-Tick UkrSEPRO CCC | ||
Climatic proofing | Damp heat, constant, to IEC 60068-2-3 Damp heat, cyclic, to IEC 60068-2-10 | ||
Ambient temperature | |||
Operation | ϑ | °C | 0 - +40 up to 60 at 1 % derating per Kelvin temperature rise |
Storage | ϑ | °C | -25 - +55 |
Altitude | m | 0 - 1000 m, above that 1 % derating per 100 m , up to 2000 m | |
Mounting position | Vertical | ||
Degree of protection | |||
Degree of Protection | IP20 (terminals IP00) | ||
Integrated | Protection type IP40 can be achieved on all sides with covers from the NZM range. | ||
Protection against direct contact | Finger and back-of-hand proof | ||
Overvoltage category/pollution degree | II/2 | ||
Shock resistance | 8 g/11 ms | ||
Vibration resistance to EN 60721-3-2 | 2M2 | ||
Radio interference level (IEC/EN 55011) | A | ||
Weight | kg | 3.7 | |
| Main conducting paths | |||
Rated operating voltage | Ue | V AC | 230 - 480 |
Supply frequency | fLN | Hz | 50/60 |
Rated operational current | Ie | A | |
AC-53 | Ie | A | 161 |
Assigned motor rating (Standard connection, In-Line) | |||
at 230 V, 50 Hz | P | kW | 45 |
at 400 V, 50 Hz | P | kW | 90 |
at 230 V, 60 Hz | P | HP | 60 |
at 460 V, 60 Hz | P | HP | 125 |
Overload cycle to IEC/EN 60947-4-2 | |||
AC-53a | 160 A: AC-53a: 3 - 5: 75 - 10 | ||
Internal bypass contacts | ● | ||
Short-circuit rating | |||
Type “1” coordination | NZMN2-M200 | ||
Type „2“ coordination (additional with the fuses for coordination type „1“) | 3 x 20.610.32-400 | ||
Fuse base (number x part no.) | 3 x 21.313.02 | ||
| Terminal capacities | |||
Cable lengths | |||
Solid | mm2 | 1 x (4 - 185) 2 x (4 - 70) | |
Stranded | mm2 | 1 x (4 - 185) 2 x (4 - 70) | |
Solid or stranded | AWG | 1 x (12 - 350 kcmil) 2 x (12 - 00) | |
Copper band | MM | 2 x 9 x 0.8 10 x 16 x 0.8 | |
Tightening torque | Nm | 5 (≤ 10 mm²); 14 (> 10 mm²) | |
Screwdriver (PZ: Pozidriv) | mm | PZ2;1 x 6 mm | |
Control cables | |||
Solid | mm2 | 1 x (0.5 - 2.5) 2 x (0.5 - 1.0) | |
Flexible with ferrule | mm2 | 1 x (0.5 - 1.5) 2 x (0.5 - 0.75) | |
Stranded | mm2 | 1 x (0.5 - 1.5) 2 x (0.5 - 1.0) | |
Solid or stranded | AWG | 1 x (21 - 14) 2 x (21 - 18) | |
Tightening torque | Nm | 0.4 | |
Screwdriver | mm | 0,6 x 3,5 | |
| Control circuit | |||
Digital inputs | |||
Control voltage | |||
DC-operated | V DC | 24 V DC +10 %/- 15 % | |
Current consumption 24 V | mA | ||
External 24 V (no-load) | mA | 14 | |
Pick-up voltage | x Us | ||
DC-operated | V DC | 17.3 - 27 | |
Drop-out voltage | x Us | ||
DC operated | V DC | 0 - 3 | |
Pick-up time | |||
DC operated | ms | 250 | |
Drop-out time | |||
DC operated | ms | 190 | |
Regulator supply | |||
Voltage | Us | V | 24 V DC +10 %/- 15 % |
Current consumption | Ie | mA | 65 |
Current consumption at peak performance (close bypass) at 24 V DC | IPeak | A/ms | 0,6/50 |
Notes | External supply voltage | ||
Relay outputs | |||
Number | 2 (TOR, Ready) | ||
Voltage range | V AC | 250 | |
AC-11 current range | A | 3 A, AC-11 | |
| Soft start function | |||
Ramp times | |||
Acceleration | s | 1 - 30 | |
Deceleration | s | 0 - 30 | |
Start voltage (= turn-off voltage) | % | 30 100 | |
Start pedestal | % | 30 - 100 | |
Fields of application | |||
Fields of application | Soft starting of three-phase asynchronous motors | ||
3-phase motors | ● | ||
| Functions | |||
Fast switching (semiconductor contactor) | - (minimum ramp time 1s) | ||
Soft start function | ● | ||
Reversing starter | External solution required | ||
Suppression of closing transients | ● | ||
Suppression of DC components for motors | ● | ||
Potential isolation between power and control sections | ● | ||
| Notes | |||
| Rated impulse withstand voltage:
| |||
| Low-voltage industrial components (EG000017) / Soft starter (EC000640) | |||
| Electric engineering, automation, process control engineering / Low-voltage switch technology / Load breakout, motor breakout / Semiconductor motor controller or soft starter ([email protected] [ACO300008]) | |||
Rated operation current Ie at 40 °C Tu | A | 160 | |
Rated operating voltage Ue | V | 230 - 460 | |
Rated power three-phase motor, inline, at 230 V | kW | 45 | |
Rated power three-phase motor, inline, at 400 V | kW | 90 | |
Rated power three-phase motor, inside delta, at 230 V | kW | 0 | |
Rated power three-phase motor, inside delta, at 400 V | kW | 0 | |
Internal bypass | Yes | ||
With display | No | ||
Torque control | No | ||
Rated surrounding temperature without derating | °C | 40 | |
Rated control supply voltage Us at AC 50HZ | V | 0 - 0 | |
Rated control supply voltage Us at AC 60HZ | V | 0 - 0 | |
Rated control supply voltage Us at DC | V | 24 - 24 | |
Voltage type for actuating | DC | ||
Integrated motor overload protection | No | ||
| Product Standards | IEC/EN 60947-4-2; GB 14048.6; UL 508; CSA-C22.2 No 0-M91; CSA-C22.2 No 14-05 CE marking | ||
| UL File No. | E251034 | ||
| UL Category Control No. | NMFT | ||
| CSA File No. | 012528 | ||
| CSA Class No. | 3211-06 | ||
| North America Certification | UL listed, CSA certified | ||
| Specially designed for North America | No | ||
| Suitable for | Branch circuits | ||
| Current Limiting Circuit-Breaker | No | ||
| Max. Voltage Rating | 480 V | ||
| Degree of Protection | IP20; UL/CSA Type 1 |
