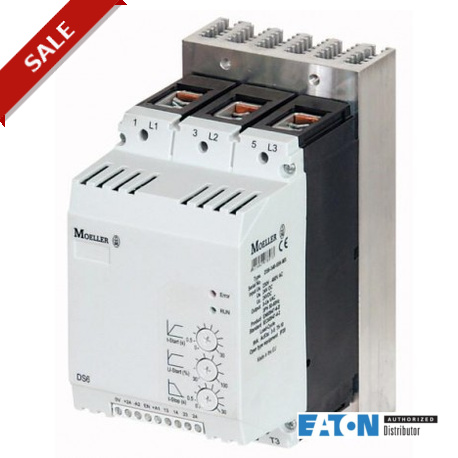

EATON - MOELLER DS6-340-75K-MX DS6-340-75K-MX 103151 EATON ELECTRIC SOFT STARTER 75KW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DS6-340-75K-MX 103151 EATON ELECTRIC SOFT STARTER 75KW

DS6-340-75K-MX

103151

EATON - MOELLER

1 Pcs.

SOFT STARTER 75KW Description: With internal bypass contacts, Function: Soft starters for three-phase loads, Mains supply voltage (50/60 Hz): ULN= 230 - 480 V AC, Supply voltage: Us= 24 V DC, Control voltage: UC= 24 V DC, Assigned motor rating (Standard connection, In-Line) at 400 V, 50 Hz: P= 75 kW, at 460 V, 60 Hz: P= 100 HP, Rated operational current AC-53: Ie= 134 A, Startup class: CLASS 10 (star-delta replacement), CLASS 20 (heavy starting duty 3 x Ie for 45 s), Rated operational voltage: Ue= 230 V, 400 V, 480 V, Standards: IEC/EN 60947-4-2, UL 508, CSA22.2-14, GB14048

Automation > Soft starter

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Delivery programme
Description
 With internal bypass contacts
Function
 Soft starters for three-phase loads
Mains supply voltage (50/60 Hz)
 ULN V AC 230 - 480
Supply voltage
 Us 24 V DC
Control voltage
 UC 24 V DC
Assigned motor rating (Standard connection, In-Line)
at 400 V, 50 Hz
 P kW 75
at 460 V, 60 Hz
 P HP 100
Rated operational current
AC-53
 Ie A 134
Startup class
 CLASS 10 (star-delta replacement)
CLASS 20 (heavy starting duty 3 x Iefor 45 s)
Rated operational voltage
 Ue 230 V
400 V
480 V
Technical data
General
Standards
 IEC/EN 60947-4-2
UL 508
CSA22.2-14
GB14048
Approvals
 CE
Approvals
 UL
CSA
C-Tick
UkrSEPRO
CCC
Climatic proofing
 Damp heat, constant, to IEC 60068-2-3
Damp heat, cyclic, to IEC 60068-2-10
Ambient temperature
Operation
 ϑ °C 0 - +40
up to 60 at 1 % derating per Kelvin temperature rise
Storage
 ϑ °C -25 - +55
Altitude
 m 0 - 1000 m, above that 1 % derating per 100 m , up to 2000 m
Mounting position
 Vertical
Degree of protection
Degree of Protection
 IP20 (terminals IP00)
Integrated
 Protection type IP40 can be achieved on all sides with covers from the NZM range.
Protection against direct contact
 Finger and back-of-hand proof
Overvoltage category/pollution degree
 II/2
Shock resistance
 8 g/11 ms
Vibration resistance to EN 60721-3-2
 2M2
Radio interference level (IEC/EN 55011)
 A
Weight
 kg 3.7
Main conducting paths
Rated operating voltage
 Ue V AC 230 - 480
Supply frequency
 fLN Hz 50/60
Rated operational current
 Ie A
AC-53
 Ie A 134
Assigned motor rating (Standard connection, In-Line)
at 230 V, 50 Hz
 P kW 30
at 400 V, 50 Hz
 P kW 75
at 230 V, 60 Hz
 P HP 50
at 460 V, 60 Hz
 P HP 100
Overload cycle to IEC/EN 60947-4-2
AC-53a
 135 A: AC-53a: 3 - 5: 75 - 10
Internal bypass contacts
 ●
Short-circuit rating
Type “1” coordination
 NZMN2-M160
Type „2“ coordination (additional with the fuses for coordination type „1“)
 3 x 20.610.32-350
Fuse base (number x part no.)
 3 x 21.313.02
Terminal capacities
Cable lengths
Solid
 mm2 1 x (4 - 185)
2 x (4 - 70)
Stranded
 mm2 1 x (4 - 185)
2 x (4 - 70)
Solid or stranded
 AWG 1 x (12 - 350 kcmil)
2 x (12 - 00)
Copper band
 MM 2 x 9 x 0.8 10 x 16 x 0.8
Tightening torque
 Nm 5 (≤ 10 mm²); 14 (> 10 mm²)
Screwdriver (PZ: Pozidriv)
 mm PZ2;1 x 6 mm
Control cables
Solid
 mm2 1 x (0.5 - 2.5)
2 x (0.5 - 1.0)
Flexible with ferrule
 mm2 1 x (0.5 - 1.5)
2 x (0.5 - 0.75)
Stranded
 mm2 1 x (0.5 - 1.5)
2 x (0.5 - 1.0)
Solid or stranded
 AWG 1 x (21 - 14)
2 x (21 - 18)
Tightening torque
 Nm 0.4
Screwdriver
 mm 0,6 x 3,5
Control circuit
Digital inputs
Control voltage
DC-operated
 V DC 24 V DC +10 %/- 15 %
Current consumption 24 V
 mA
External 24 V (no-load)
 mA 14
Pick-up voltage
 x Us
DC-operated
 V DC 17.3 - 27
Drop-out voltage
 x Us
DC operated
 V DC 0 - 3
Pick-up time
DC operated
 ms 250
Drop-out time
DC operated
 ms 190
Regulator supply
Voltage
 Us V 24 V DC +10 %/- 15 %
Current consumption
 Ie mA 65
Current consumption at peak performance (close bypass) at 24 V DC
 IPeak A/ms 0,6/50
Notes
 External supply voltage
Relay outputs
Number
 2 (TOR, Ready)
Voltage range
 V AC 250
AC-11 current range
 A 3 A, AC-11
Soft start function
Ramp times
Acceleration
 s 1 - 30
Deceleration
 s 0 - 30
Start voltage (= turn-off voltage)
 % 30 100
Start pedestal
 % 30 - 100
Fields of application
Fields of application
 Soft starting of three-phase asynchronous motors
3-phase motors
 ●
Functions
Fast switching (semiconductor contactor)
 - (minimum ramp time 1s)
Soft start function
 ●
Reversing starter
 External solution required
Suppression of closing transients
 ●
Suppression of DC components for motors
 ●
Potential isolation between power and control sections
 ●
Notes


Rated impulse withstand voltage:

  • 1.2 µs/50 µs (rise time/fall time of the pulse to IEC/EN 60947‐2 or ‐3)
  • Applies for control circuit/power section/enclosure
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Soft starter (EC000640)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Load breakout, motor breakout / Semiconductor motor controller or soft starter ([email protected] [ACO300008])
Rated operation current Ie at 40 °C Tu
 A 135
Rated operating voltage Ue
 V 230 - 460
Rated power three-phase motor, inline, at 230 V
 kW 30
Rated power three-phase motor, inline, at 400 V
 kW 75
Rated power three-phase motor, inside delta, at 230 V
 kW 0
Rated power three-phase motor, inside delta, at 400 V
 kW 0
Internal bypass
 Yes
With display
 No
Torque control
 No
Rated surrounding temperature without derating
 °C 40
Rated control supply voltage Us at AC 50HZ
 V 0 - 0
Rated control supply voltage Us at AC 60HZ
 V 0 - 0
Rated control supply voltage Us at DC
 V 24 - 24
Voltage type for actuating
 DC
Integrated motor overload protection
 No
Approvals
Product Standards IEC/EN 60947-4-2; GB 14048.6; UL 508; CSA-C22.2 No 0-M91; CSA-C22.2 No 14-05 CE marking
UL File No. E251034
UL Category Control No. NMFT
CSA File No. 012528
CSA Class No. 3211-06
North America Certification UL listed, CSA certified
Specially designed for North America No
Suitable for Branch circuits
Current Limiting Circuit-Breaker No
Max. Voltage Rating 480 V
Degree of Protection IP20; UL/CSA Type 1
Dimensions
AWA8250-2330 Soft starter DS6
>
>
>>

ETIM for 103151 Low-voltage industrial controls and switchgear (EC000640)
Feature Name Feature Value
Rated operation current Ie at 40 °C Tu (EF007039) None A
Rated operating voltage Ue (EF002418) None V
Rated power three-phase motor, inline, at 230 V (EF007053) None kW
Rated power three-phase motor, inline, at 400 V (EF007054) None kW
Rated power three-phase motor, inside delta, at 230 V (EF007055) None kW
Rated power three-phase motor, inside delta, at 400 V (EF007056) None kW
Function (EF000030)
Internal bypass (EF009214) false
With display (EF000458) false
Torque control (EF009215) false
Rated surrounding temperature without derating (EF007074) None °C
Rated control supply voltage AC 50 Hz (EF003978) None V
Rated control supply voltage AC 60 Hz (EF003979) None V
Rated control supply voltage DC (EF003980) None V
Voltage type for actuating (EF008242)
Integrated motor overload protection (EF007297) false
Release class (EF006668)
Degree of protection (IP) (EF005474)
Degree of protection (NEMA) (EF011959)
