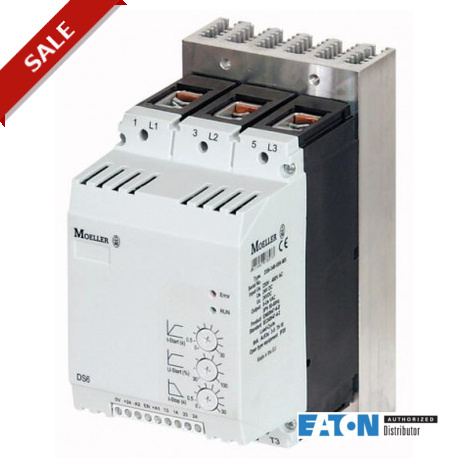

DS6-340-110K-MX 103153 EATON ELECTRIC SOFT STARTER 110KW
DS6-340-110K-MX
103153
EATON - MOELLER
1 Pcs.
SOFT STARTER 110KW
Description: With internal bypass contacts, Function: Soft starters for three-phase loads, Mains supply voltage (50/60 Hz): ULN= 230 - 480 V AC, Supply voltage: Us= 24 V DC, Control voltage: UC= 24 V DC, Assigned motor rating (Standard connection, In-Line) at 400 V, 50 Hz: P= 110 kW, at 460 V, 60 Hz: P= 150 HP, Rated operational current AC-53: Ie= 196 A, Startup class: CLASS 10 (star-delta replacement), CLASS 20 (heavy starting duty 3 x Ie for 45 s), Rated operational voltage: Ue= 230 V, 400 V, 480 V, Standards: IEC/EN 60947-4-2, UL 508, CSA22.2-14, GB14048
Automation > Soft starter
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 1SFA896107R1100 soft starter offers compact, efficient motor control for standard industrial automation setups, ensuring seamless ramping during startup sequences. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85371091
- Data Sheet, Technical Information: 1SFC132012C0201
- Instructions and Manuals: 1SFC132076M9901
- Instructions and Manuals (Part 3): 1SFC132060M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- EPLAN Data: 9AAC129236_EPLAN
- Wiring Diagram: N/A
- Product Net Width: 114 mm
- Product Net Height: 140 mm
- Product Net Depth / Length: 45 mm
- Product Net Weight: 0.4 kg
- Rated Operational Voltage: 208 ... 600 V AC
- Rated Control Supply Voltage (U s ): 24 V AC/DC
- Rated Control Circuit Voltage (U c ): 24 V DC
- Rated Frequency (f): 50/60 Hz
More info
▲Delivery programme
Description | With internal bypass contacts | ||
Function | Soft starters for three-phase loads | ||
Mains supply voltage (50/60 Hz) | ULN | V AC | 230 - 480 |
Supply voltage | Us | 24 V DC | |
Control voltage | UC | 24 V DC | |
Assigned motor rating (Standard connection, In-Line) | |||
at 400 V, 50 Hz | P | kW | 110 |
at 460 V, 60 Hz | P | HP | 150 |
Rated operational current | |||
AC-53 | Ie | A | 196 |
Startup class | CLASS 10 (star-delta replacement) CLASS 20 (heavy starting duty 3 x Iefor 45 s) | ||
Rated operational voltage | Ue | 230 V 400 V 480 V |
Technical data
| General | |||
Standards | IEC/EN 60947-4-2 UL 508 CSA22.2-14 GB14048 | ||
Approvals | CE | ||
Approvals | UL CSA C-Tick UkrSEPRO CCC | ||
Climatic proofing | Damp heat, constant, to IEC 60068-2-3 Damp heat, cyclic, to IEC 60068-2-10 | ||
Ambient temperature | |||
Operation | ϑ | °C | 0 - +40 up to 60 at 1 % derating per Kelvin temperature rise |
Storage | ϑ | °C | -25 - +55 |
Altitude | m | 0 - 1000 m, above that 1 % derating per 100 m , up to 2000 m | |
Mounting position | Vertical | ||
Degree of protection | |||
Degree of Protection | IP20 (terminals IP00) | ||
Integrated | Protection type IP40 can be achieved on all sides with covers from the NZM range. | ||
Protection against direct contact | Finger and back-of-hand proof | ||
Overvoltage category/pollution degree | II/2 | ||
Shock resistance | 8 g/11 ms | ||
Vibration resistance to EN 60721-3-2 | 2M2 | ||
Radio interference level (IEC/EN 55011) | A | ||
Weight | kg | 3.7 | |
| Main conducting paths | |||
Rated operating voltage | Ue | V AC | 230 - 480 |
Supply frequency | fLN | Hz | 50/60 |
Rated operational current | Ie | A | |
AC-53 | Ie | A | 196 |
Assigned motor rating (Standard connection, In-Line) | |||
at 230 V, 50 Hz | P | kW | 55 |
at 400 V, 50 Hz | P | kW | 110 |
at 230 V, 60 Hz | P | HP | 75 |
at 460 V, 60 Hz | P | HP | 150 |
Overload cycle to IEC/EN 60947-4-2 | |||
AC-53a | 200 A: AC-53a: 3 - 5: 75 - 10 | ||
Internal bypass contacts | ● | ||
Short-circuit rating | |||
Type “1” coordination | NZMN2-M200 | ||
Type „2“ coordination (additional with the fuses for coordination type „1“) | 3 x 20.610.20-500 | ||
Fuse base (number x part no.) | 3 x 21.313.02 | ||
| Terminal capacities | |||
Cable lengths | |||
Solid | mm2 | 1 x (4 - 185) 2 x (4 - 70) | |
Stranded | mm2 | 1 x (4 - 185) 2 x (4 - 70) | |
Solid or stranded | AWG | 1 x (12 - 350 kcmil) 2 x (12 - 00) | |
Copper band | MM | 2 x 9 x 0.8 10 x 16 x 0.8 | |
Tightening torque | Nm | 5 (≤ 10 mm²); 14 (> 10 mm²) | |
Screwdriver (PZ: Pozidriv) | mm | PZ2;1 x 6 mm | |
Control cables | |||
Solid | mm2 | 1 x (0.5 - 2.5) 2 x (0.5 - 1.0) | |
Flexible with ferrule | mm2 | 1 x (0.5 - 1.5) 2 x (0.5 - 0.75) | |
Stranded | mm2 | 1 x (0.5 - 1.5) 2 x (0.5 - 1.0) | |
Solid or stranded | AWG | 1 x (21 - 14) 2 x (21 - 18) | |
Tightening torque | Nm | 0.4 | |
Screwdriver | mm | 0,6 x 3,5 | |
| Control circuit | |||
Digital inputs | |||
Control voltage | |||
DC-operated | V DC | 24 V DC +10 %/- 15 % | |
Current consumption 24 V | mA | ||
External 24 V (no-load) | mA | 14 | |
Pick-up voltage | x Us | ||
DC-operated | V DC | 17.3 - 27 | |
Drop-out voltage | x Us | ||
DC operated | V DC | 0 - 3 | |
Pick-up time | |||
DC operated | ms | 250 | |
Drop-out time | |||
DC operated | ms | 190 | |
Regulator supply | |||
Voltage | Us | V | 24 V DC +10 %/- 15 % |
Current consumption | Ie | mA | 65 |
Current consumption at peak performance (close bypass) at 24 V DC | IPeak | A/ms | 0,6/50 |
Notes | External supply voltage | ||
Relay outputs | |||
Number | 2 (TOR, Ready) | ||
Voltage range | V AC | 250 | |
AC-11 current range | A | 3 A, AC-11 | |
| Soft start function | |||
Ramp times | |||
Acceleration | s | 1 - 30 | |
Deceleration | s | 0 - 30 | |
Start voltage (= turn-off voltage) | % | 30 100 | |
Start pedestal | % | 30 - 100 | |
Fields of application | |||
Fields of application | Soft starting of three-phase asynchronous motors | ||
3-phase motors | ● | ||
| Functions | |||
Fast switching (semiconductor contactor) | - (minimum ramp time 1s) | ||
Soft start function | ● | ||
Reversing starter | External solution required | ||
Suppression of closing transients | ● | ||
Suppression of DC components for motors | ● | ||
Potential isolation between power and control sections | ● | ||
| Notes | |||
| Rated impulse withstand voltage:
| |||
Technical data ETIM 6.0(Show features)(Hide features)
| Low-voltage industrial components (EG000017) / Soft starter (EC000640) | |||
| Electric engineering, automation, process control engineering / Low-voltage switch technology / Load breakout, motor breakout / Semiconductor motor controller or soft starter ([email protected] [ACO300008]) | |||
Rated operation current Ie at 40 °C Tu | A | 196 | |
Rated operating voltage Ue | V | 230 - 460 | |
Rated power three-phase motor, inline, at 230 V | kW | 55 | |
Rated power three-phase motor, inline, at 400 V | kW | 110 | |
Rated power three-phase motor, inside delta, at 230 V | kW | 0 | |
Rated power three-phase motor, inside delta, at 400 V | kW | 0 | |
Internal bypass | Yes | ||
With display | No | ||
Torque control | No | ||
Rated surrounding temperature without derating | °C | 40 | |
Rated control supply voltage Us at AC 50HZ | V | 0 - 0 | |
Rated control supply voltage Us at AC 60HZ | V | 0 - 0 | |
Rated control supply voltage Us at DC | V | 24 - 24 | |
Voltage type for actuating | DC | ||
Integrated motor overload protection | No | ||
Approvals
| Product Standards | IEC/EN 60947-4-2; GB 14048.6; UL 508; CSA-C22.2 No 0-M91; CSA-C22.2 No 14-05 CE marking | ||
| UL File No. | E251034 | ||
| UL Category Control No. | NMFT | ||
| CSA File No. | 012528 | ||
| CSA Class No. | 3211-06 | ||
| North America Certification | UL listed, CSA certified | ||
| Specially designed for North America | No | ||
| Suitable for | Branch circuits | ||
| Current Limiting Circuit-Breaker | No | ||
| Max. Voltage Rating | 480 V | ||
| Degree of Protection | IP20; UL/CSA Type 1 |
