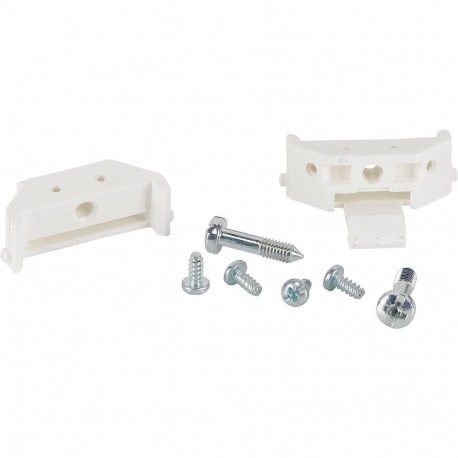

EATON - MOELLER BPZ-SNAP BPZ-SNAP 116677 Y7-116677 EATON ELECTRIC Snap element for MSW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPZ-SNAP 116677 Y7-116677 EATON ELECTRIC Snap element for MSW

BPZ-SNAP

116677

Y7-116677

EATON - MOELLER

1 Pcs.

Snap element for MSW BPZ-SNAP Eaton xEnergy Basic LV systems Low voltage switchgear. Snap element for MSW Snap fitting element, BPZ-SNAP is mounted on BPZ-MSW, equipment supplied: 2 snap fitting elements

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller snap element for MSW (part number BPZ-SNAP) is a quick-mounting plastic hardware component designed to facilitate tool-free, snap-in installation of modular system components within electrical enclosures. These fastening elements streamline assembly times for panel builders and technicians.

Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Mounting kit
  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 60 mm
  • Height (EF000040): 50 mm
  • Depth (EF000049): 50 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Plastic
  • Colour (EF000007): White
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEnergy Basic installation component
Catalog Number
116677
Model Code
BPZ-SNAP
EAN
4015081164226
Product Length/Depth
50 mm
Product Height
50 mm
Product Width
60 mm
Product Weight
0.03 kg
Compliances
RoHS conform

Delivery program

Type
Additional equipment
Model
Mounting kit
Application
Mounting side wall
Color
White

Technical data - mechanical

Mounting method
Floor standing distribution board
Flush mounting
Surface mounting
Material
Plastic
Load capacity - max
0 kg
Housing material
Plastic
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm

Additional information

Functions
Additional equipment
RAL-number
0
