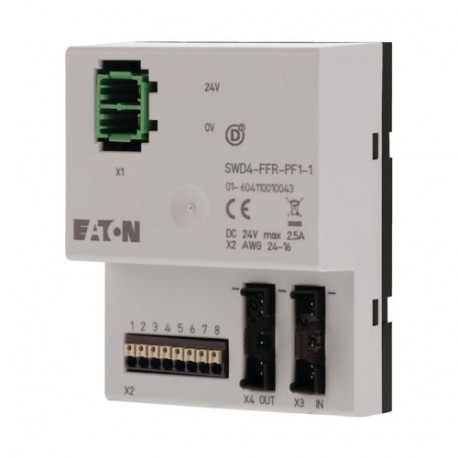

SWD4-FFR-PF1-1 168880 Y7-168880 EATON ELECTRIC Feeder module, SmartWire-DT, supply for contactors/cards of a..
SWD4-FFR-PF1-1
168880
Y7-168880
EATON - MOELLER
1 Pcs.
Automation > Fieldbus, decentr. periphery - power supply/segment module
Smartwire Darwin
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller feeder module (part number SWD4-FFR-PF1-1) serves as a specialized component within automated networks to supply operating power directly to contactors and auxiliary cards.
Feeder modules manage distribution across field bus setups to keep control gear reliably energized. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Supply voltage AC 50 Hz (EF007532): 0 V
- Supply voltage AC 60 Hz (EF007533): 0 V
- Supply voltage DC (EF007534): 20.4 V
- Voltage type (supply voltage) (EF002991): DC
- Number of HW-interfaces industrial Ethernet (EF003020): 0
- Number of interfaces PROFINET (EF006932): 0
- Number of HW-interfaces RS-232 (EF003021): 0
- Number of HW-interfaces RS-422 (EF003022): 0
- Number of HW-interfaces RS-485 (EF003023): 0
- Number of HW-interfaces serial TTY (EF003024): 0
- Number of HW-interfaces parallel (EF003026): 0
- Number of HW-interfaces wireless (EF006933): 0
- Number of HW-interfaces USB (EF003025): 0
- Number of HW-interfaces other (EF003027): 3
- With optical interface (EF003028): No
- Supporting protocol for EtherCAT (EF017564): No
More info
▲General specifications
EN 50178
Features & Functions
General
Wall mounting/direct mounting
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Screw fixing using fixing brackets ZB4-101-GF1 (accessories)
Ambient conditions, mechanical
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-3
Electro magnetic compatibility
Electrical rating
Communication
SWD: Plug, 8-pole
