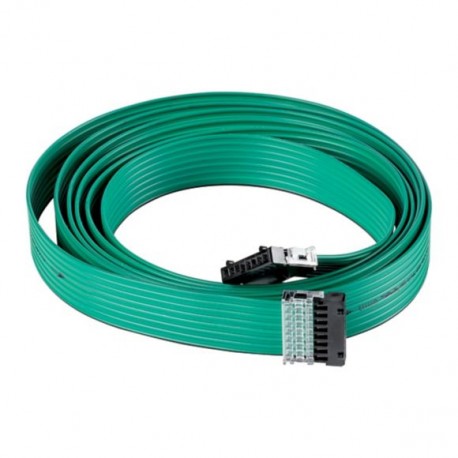

SWD4-5LF8-24-2S 116028 Y7-116028 EATON ELECTRIC Flat cable, SmartWire-DT, 5m, 8-Pole, prefabricated with 2 b..
SWD4-5LF8-24-2S
116028
Y7-116028
EATON - MOELLER
1 Pcs.
Cables > Data and communication cable
Smartwire Darwin
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller SWD4-5LF8-24-2S is a prefabricated SmartWire-DT flat cable designed to streamline machine wiring and interlock industrial control panels without complex multi-core terminal blocks. Decentralized wiring systems use these specialized flat cables to distribute power and communication safely across modular machine layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Duplex (EF023003): false
- Conductor surface (EF010804): Tinned
- Diameter conductor (EF001621): 1.35 mm
- Nominal cross section conductor (EF000060): 0.23 mm²
- AWG size (EF011789): 24
- Conductor category (EF001632): Class 2 = stranded
- Number of cores (EF001792): 8
- Number of stranding elements (EF001688): 0
- Stranding element (EF001617): No
- Material core insulation (EF000061): Polyvinyl chloride (PVC)
- Core identification according to HD 308 S2 (EF013766): false
- Core identification (EF000067): Colour
- Longitudinal water blocking cable (EF011011): true
- Radial water blocking cable (EF011012): false
- Suitable for underground installation (EF003689): false
- Material outer sheath (EF001625): Polyvinyl chloride (PVC)
More info
▲General specifications
CSA Class No.: 3211-07
UL Category Control No.: NKCR
CSA
UL
CSA File No.: 2324643
