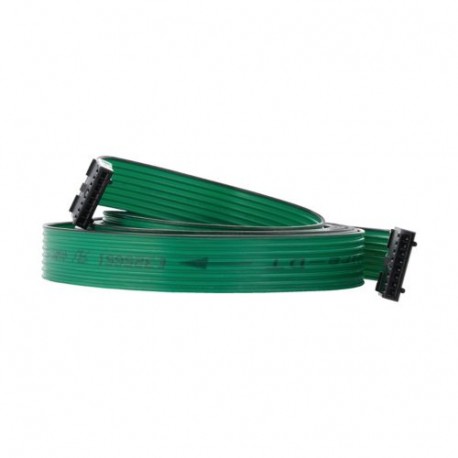

SWD4-3LF8-24-2S 116027 Y7-116027 EATON ELECTRIC Flat cable, SmartWire-DT, 3m, 8-Pole, prefabricated with 2 b..
SWD4-3LF8-24-2S
116027
Y7-116027
EATON - MOELLER
1 Pcs.
Cables > Data and communication cable
Smartwire Darwin
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller SWD4-3LF8-24-2S flat cable provides a prefabricated bus line specifically designed for SmartWire-DT architectures in electrical control panels. Flat ribbon-style distribution cables simplify the connection of multiple control devices in a compact footprint.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Duplex (EF023003): No
- Conductor surface (EF010804): Tinned
- Diameter conductor (EF001621): 1.35 mm
- Nominal cross section conductor (EF000060): 0.23 mm²
- AWG size (EF011789): 24
- Conductor category (EF001632): Class 2 = stranded
- Number of cores (EF001792): 8
- Number of stranding elements (EF001688): 0
- Stranding element (EF001617): No
- Material core insulation (EF000061): Polyvinyl chloride (PVC)
- Core identification according to HD 308 S2 (EF013766): No
- Core identification (EF000067): Colour
- Longitudinal water blocking cable (EF011011): No
- Radial water blocking cable (EF011012): No
- Suitable for underground installation (EF003689): No
- Material outer sheath (EF001625): Polyvinyl chloride (PVC)
More info
▲General specifications
UL File No.: E29184
UL Category Control No.: NKCR
CSA File No.: 2324643
CSA Class No.: 3211-07
CSA
