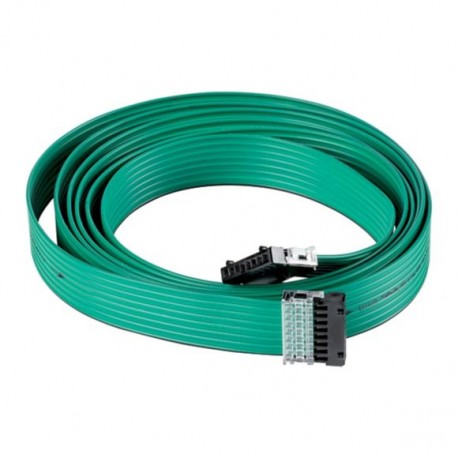

EATON - MOELLER SWD4-10LF8-24-2S SWD4-10LF8-24-2S 116029 Y7-116029 EATON ELECTRIC Flat cable, SmartWire-DT, 10m, 8-Pole, prefabricated with 2.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SWD4-10LF8-24-2S 116029 Y7-116029 EATON ELECTRIC Flat cable, SmartWire-DT, 10m, 8-Pole, prefabricated with 2..

SWD4-10LF8-24-2S

116029

Y7-116029

EATON - MOELLER

1 Pcs.

Flat cable, SmartWire-DT, 10m, 8-Pole, prefabricated with 2 blade terminals SWD4-8MF2 SWD4-10LF8-24-2S SmartWire-DT ribbon cable for connecting SmartWire-DT participants within the control panel, 10 m, 8-Pole, prefabricated with 2 blade terminals SWD4-8MF2

Cables > Data and communication cable
Smartwire Darwin

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Flat cable, SmartWire-DT, 10m, 8-Pole, prefabricated with 2.. produced by Eaton Moeller under part number SWD4-10LF8-24-2S facilitates streamlined communication and power distribution in machine automation architectures. Flat ribbon and bus cables are commonly utilized to connect modular control devices directly to the control architecture, minimizing wiring complexity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Duplex (EF023003): No
  • Conductor surface (EF010804): Tinned
  • Diameter conductor (EF001621): 1.35 mm
  • Nominal cross section conductor (EF000060): 0.23 mm²
  • AWG size (EF011789): 24
  • Conductor category (EF001632): Class 2 = stranded
  • Number of cores (EF001792): 8
  • Number of stranding elements (EF001688): 0
  • Stranding element (EF001617): Pairs
  • Material core insulation (EF000061): Polyvinyl chloride (PVC)
  • Core identification according to HD 308 S2 (EF013766): No
  • Core identification (EF000067): Colour
  • Screen over stranding element (EF001623): Foil
  • Stranding (EF003802): Bundle
  • Longitudinal water blocking cable (EF011011): Yes
  • Radial water blocking cable (EF011012): No

More info

▲

General specifications

Product Name
Eaton SWD4 Accessory Flat cable
Catalog Number
116029
Model Code
SWD4-10LF8-24-2S
EAN
4015081157693
Product Length/Depth
130 mm
Product Height
22 mm
Product Width
130 mm
Product Weight
0.345 kg
Certifications
CSA Class No.: 3211-07
UL
UL Category Control No.: NKCR
CSA
UL File No.: E29184
CSA File No.: 2324643

Features & Functions

Features
Longitudinal water blocking cable
UV resistant
Fitted with:
2 blade terminals SWD4-8MF2
Functions
For connecting the SmartWire-DT modules within the control panel

General

Cable length
10 m
Number of Poles
Eight-pole
Outer diameter - approximate
17.5 mm
Outer sheath material
Polyvinyl chloride (PVC)
Permitted bending radius, moving application with forced guidance - min
15 mm
Product category
SmartWire-DT accessories
Suitable as
Signaling cable

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Safety

Flame retardant
In accordance with EN 60332-1-2

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
