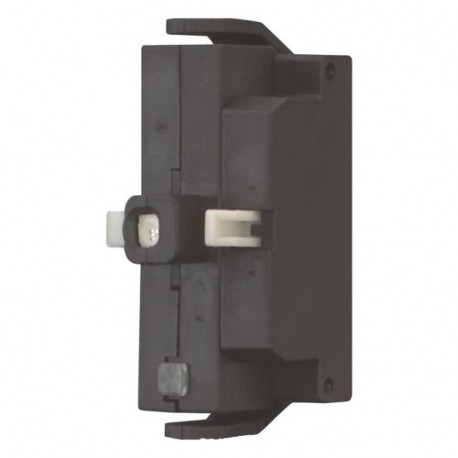

EATON - MOELLER M22-SWD-K22LEDC-G M22-SWD-K22LEDC-G 116011 Y7-116011 EATON ELECTRIC Illuminated pushbutton function element, SmartWire-DT, 2W,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-SWD-K22LEDC-G 116011 Y7-116011 EATON ELECTRIC Illuminated pushbutton function element, SmartWire-DT, 2W,..

M22-SWD-K22LEDC-G

116011

Y7-116011

EATON - MOELLER

1 Pcs.

Illuminated pushbutton function element, SmartWire-DT, 2W, LED, green, base fixing M22-SWD-K22LEDC-G Eaton Moeller® series M22 Function element, for combination with RMQ-Titan operating elements M22-..., 2 changeover contact, Base fixing, green Function element, Fixing: Base fixing, Connection to SmartWire-DT: yes

Automation > Auxiliary contact block
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22-SWD-K22LEDC-G illuminated pushbutton function element integrates control signaling directly into automated industrial networks. Pushbutton modules with built-in LEDs provide operators with immediate visual status cues while routing control signals securely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Number of contacts as normally closed contact (EF008255): 2
  • Number of fault-signal switches (EF007613): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Type of electric connection (EF003961): Flat plug-in connection
  • Model (EF000010): Clip-on
  • Mounting method (EF000003): Front fastening
  • Lamp holder (EF000048): LED not exchangeable

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Function element
Catalog Number
116011
Model Code
M22-SWD-K22LEDC-G
EAN
4015081157518
Product Length/Depth
45 mm
Product Height
42 mm
Product Width
17 mm
Product Weight
0.013 kg
Certifications
CSA
UL Category Control No.: NKCR
UL
EN 50178
IEC/EN 61131-2
UL File No.: E29184
CSA Class No.: 3211-07
CSA File No.: 2324643

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
