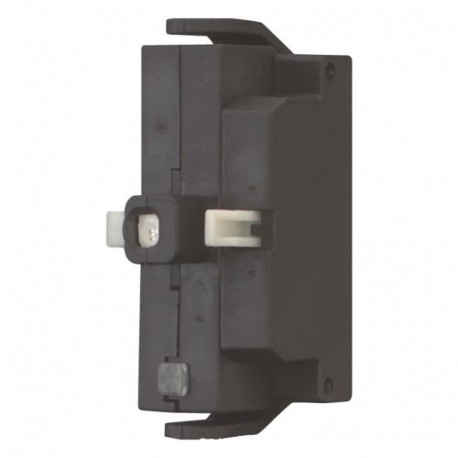

Illuminated pushbutton function element, SmartWire-DT, 2W, LED, blue, base fixing M22-SWD-K22LEDC-B Eaton Moeller® series M22 Function element, for combination with RMQ-Titan operating elements M22-..., 2 changeover contact, Base fixing, blue Function element, Fixing: Base fixing, Connection to SmartWire-DT: yes

Automation > Auxiliary contact block
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Integrating electronic bus communication with optical and mechanical switching, the Eaton Moeller M22-SWD-K22LEDC-B illuminated pushbutton function element connects directly to SmartWire-DT networks. These units streamline machine wiring by replacing traditional multi-conductor control schemes with a streamlined digital network drop. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Number of contacts as normally closed contact (EF008255): 2
  • Number of fault-signal switches (EF007613): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Type of electric connection (EF003961): Flat plug-in connection
  • Model (EF000010): Clip-on
  • Mounting method (EF000003): Front fastening
  • Lamp holder (EF000048): LED not exchangeable

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Function element
Catalog Number
116010
Model Code
M22-SWD-K22LEDC-B
EAN
4015081157501
Product Length/Depth
45 mm
Product Height
42 mm
Product Width
17 mm
Product Weight
0.013 kg
Certifications
IEC/EN 61131-2
CSA File No.: 2324643
CSA Class No.: 3211-07
UL
EN 50178
UL File No.: E29184
CSA
UL Category Control No.: NKCR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
