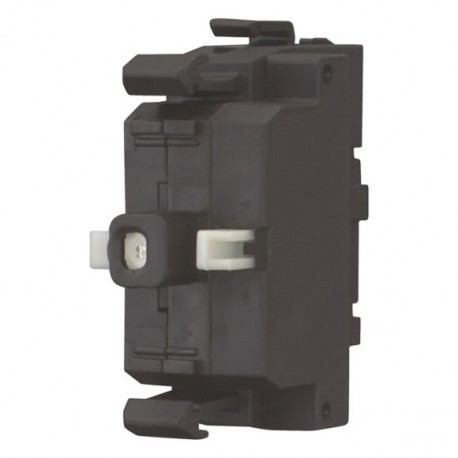

EATON - MOELLER M22-SWD-K22LED-G M22-SWD-K22LED-G 115980 Y7-115980 EATON ELECTRIC Illuminated pushbutton function element, SmartWire-DT, 2W, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-SWD-K22LED-G 115980 Y7-115980 EATON ELECTRIC Illuminated pushbutton function element, SmartWire-DT, 2W, ..

M22-SWD-K22LED-G

115980

Y7-115980

EATON - MOELLER

1 Pcs.

Illuminated pushbutton function element, SmartWire-DT, 2W, LED, green, front mount M22-SWD-K22LED-G Eaton Moeller® series M22 Function element, for combination with RMQ-Titan operating elements M22-..., 2 changeover contact, Front fixing, green Function element, Fixing: Front fixing, Connection to SmartWire-DT: yes

Automation > Auxiliary contact block
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-SWD-K22LED-G illuminated pushbutton function element integrates control contacts with LED illumination capabilities through a network architecture. Such devices are frequently utilized on machine control desks and operator interfaces to combine visual status indicators with dependable switching elements.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Number of contacts as normally closed contact (EF008255): 2
  • Number of fault-signal switches (EF007613): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Type of electric connection (EF003961): Flat plug-in connection
  • Model (EF000010): Clip-on
  • Mounting method (EF000003): Front fastening
  • Lamp holder (EF000048): LED non-replaceable

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Function element
Catalog Number
115980
Model Code
M22-SWD-K22LED-G
EAN
4015081157204
Product Length/Depth
45 mm
Product Height
42 mm
Product Width
17 mm
Product Weight
0.013 kg
Certifications
CSA Class No.: 3211-07
CSA
UL File No.: E29184
UL Category Control No.: NKCR
IEC/EN 61131-2
CSA File No.: 2324643
UL
EN 50178
BV
LRS
