View larger
Images are for illustrative purposes only. Please refer to data sheet for details

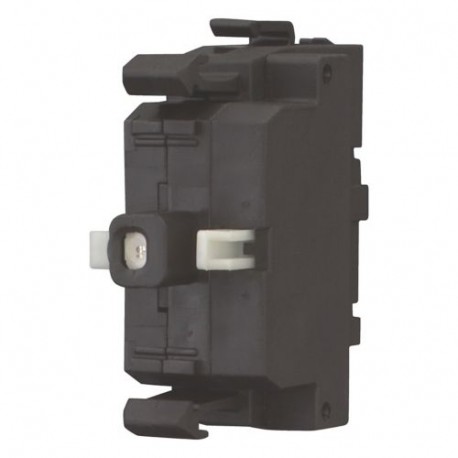

M22-SWD-K22LED-B 115979 Y7-115979 EATON ELECTRIC Illuminated pushbutton function element, SmartWire-DT, 2W, ..
M22-SWD-K22LED-B
115979
Y7-115979
EATON - MOELLER
1 Pcs.
Illuminated pushbutton function element, SmartWire-DT, 2W, LED, blue, front mount
M22-SWD-K22LED-B
Eaton Moeller® series M22 Function element, for combination with RMQ-Titan operating elements M22-..., 2 changeover contact, Front fixing, blue
Function element, Fixing: Front fixing, Connection to SmartWire-DT: yes
Automation > Auxiliary contact block
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Function element
Catalog Number
115979
Model Code
M22-SWD-K22LED-B
EAN
4015081157198
Product Length/Depth
45 mm
Product Height
42 mm
Product Width
17 mm
Product Weight
0.013 kg
Certifications
CSA
UL File No.: E29184
IEC/EN 61131-2
UL
CSA File No.: 2324643
UL Category Control No.: NKCR
CSA Class No.: 3211-07
EN 50178
BV
LRS
UL File No.: E29184
IEC/EN 61131-2
UL
CSA File No.: 2324643
UL Category Control No.: NKCR
CSA Class No.: 3211-07
EN 50178
BV
LRS
| Feature Name | Feature Value |
|---|---|
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Number of fault-signal switches (EF007613) | 0 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 0 A |
| Type of electric connection (EF003961) | Flat plug-in connection |
| Model (EF000010) | Clip-on |
| Mounting method (EF000003) | Front fastening |
| Lamp holder (EF000048) | LED not exchangeable |
