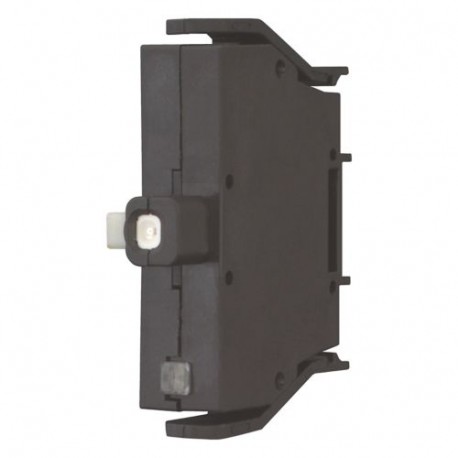

Illuminated pushbutton function element, SmartWire-DT, 1W, LED, white, base fixing M22-SWD-K11LEDC-W Eaton Moeller® series M22 Function element, 1 N/O, 1 N/C, 1 C/O, Front fastening, Base fixing, SWD: Plug, 8-pole, White Function element, Fixing: Base fixing, Connection to SmartWire-DT: yes

Automation > Auxiliary contact block
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An illuminated pushbutton function element, identified as the M22-SWD-K11LEDC-W 116003 Y7-116003 EATON ELECTRIC Illuminated pushbutton function element, SmartWire-DT, 1W,.. by Eaton Moeller, connects operator controls directly to communication networks. This functional element integrates LED illumination and contact switching for modern industrial control architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 1
  • Number of fault-signal switches (EF007613): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Type of electric connection (EF003961): Flat plug-in connection
  • Model (EF000010): Clip-on
  • Mounting method (EF000003): Front fastening
  • Lamp holder (EF000048): LED not exchangeable

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Function element
Catalog Number
116003
Model Code
M22-SWD-K11LEDC-W
EAN
4015081157433
Product Length/Depth
45 mm
Product Height
42 mm
Product Width
10 mm
Product Weight
0.009 kg
Certifications
IEC/EN 61131-2
EN 50178
CSA Class No.: 3211-07
UL File No.: E29184
UL
UL Category Control No.: NKCR
CSA
CSA File No.: 2324643

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
