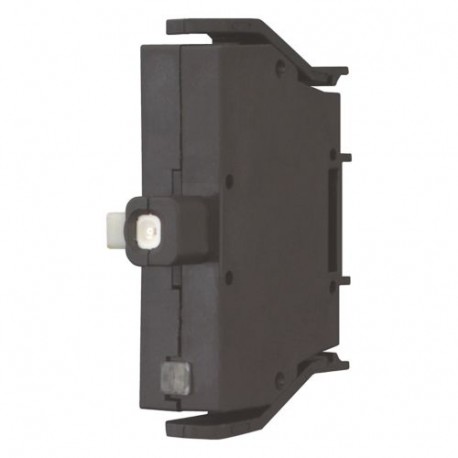

M22-SWD-K11LEDC-B 116004 Y7-116004 EATON ELECTRIC Illuminated pushbutton function element, SmartWire-DT, 1W,..
M22-SWD-K11LEDC-B
116004
Y7-116004
EATON - MOELLER
1 Pcs.
Automation > Auxiliary contact block
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller M22-SWD-K11LEDC-B 116004 Y7-116004 EATON ELECTRIC Illuminated pushbutton function element, SmartWire-DT, 1W,.. is an advanced function element that integrates push-button switching, LED illumination, and SmartWire-DT network connectivity into a single compact device. This component streamlines panel wiring by communicating directly through industrial bus architecture while providing local status indication.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of contacts as change-over contact (EF008257): 1
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 1
- Number of fault-signal switches (EF007613): 0
- Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
- Type of electric connection (EF003961): Flat plug-in connection
- Model (EF000010): Clip-on
- Mounting method (EF000003): Front fastening
- Lamp holder (EF000048): LED not exchangeable
More info
▲General specifications
EN 50178
UL
CSA
CSA Class No.: 3211-07
UL Category Control No.: NKCR
UL File No.: E29184
IEC/EN 61131-2
