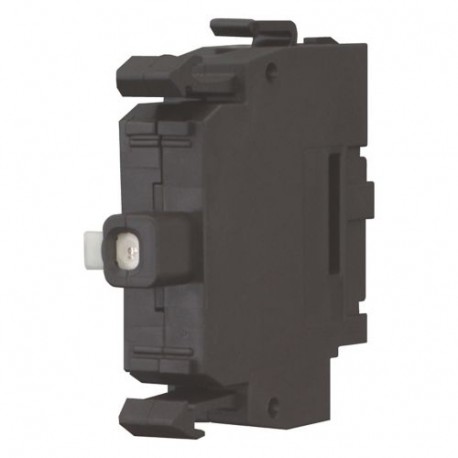

EATON - MOELLER M22-SWD-K11LED-W M22-SWD-K11LED-W 115972 Y7-115972 EATON ELECTRIC Illuminated pushbutton function element, SmartWire-DT, 1W, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-SWD-K11LED-W 115972 Y7-115972 EATON ELECTRIC Illuminated pushbutton function element, SmartWire-DT, 1W, ..

M22-SWD-K11LED-W

115972

Y7-115972

EATON - MOELLER

1 Pcs.

Illuminated pushbutton function element, SmartWire-DT, 1W, LED, white, front mount M22-SWD-K11LED-W Eaton Moeller® series M22 Function element, for combination with RMQ-Titan operating elements M22-..., 1 changeover contact, Front fixing, white Function element, Fixing: Front fixing, Connection to SmartWire-DT: yes

Automation > Auxiliary contact block
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An illuminated pushbutton function element, including the Eaton Moeller M22-SWD-K11LED-W, integrates status lighting and contact switching directly into modern bus-compatible control topologies. Operators rely on these elements to interface with machine control stations while communicating signal states back to the controller network.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 1
  • Number of fault-signal switches (EF007613): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Type of electric connection (EF003961): Flat plug-in connection
  • Model (EF000010): Clip-on
  • Mounting method (EF000003): Front fastening
  • Lamp holder (EF000048): LED not exchangeable

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Function element
Catalog Number
115972
Model Code
M22-SWD-K11LED-W
EAN
4015081157129
Product Length/Depth
45 mm
Product Height
42 mm
Product Width
10 mm
Product Weight
0.009 kg
Certifications
CSA File No.: 2324643
UL
UL File No.: E29184
CSA Class No.: 3211-07
IEC/EN 61131-2
CSA
EN 50178
UL Category Control No.: NKCR
BV
LRS

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
