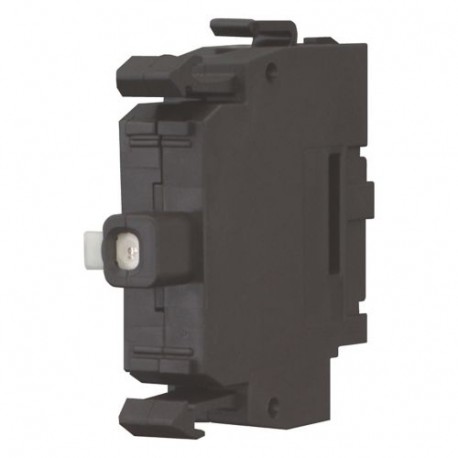

EATON - MOELLER M22-SWD-K11LED-G M22-SWD-K11LED-G 115974 Y7-115974 EATON ELECTRIC Illuminated pushbutton function element, SmartWire-DT, 1W, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-SWD-K11LED-G 115974 Y7-115974 EATON ELECTRIC Illuminated pushbutton function element, SmartWire-DT, 1W, ..

M22-SWD-K11LED-G

115974

Y7-115974

EATON - MOELLER

1 Pcs.

Illuminated pushbutton function element, SmartWire-DT, 1W, LED, green, front mount M22-SWD-K11LED-G Eaton Moeller® series M22 Function element, for combination with RMQ-Titan operating elements M22-..., 1 changeover contact, Front fixing, green Function element, Fixing: Front fixing, Connection to SmartWire-DT: yes

Automation > Auxiliary contact block
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller illuminated pushbutton function element integrates switching contacts with integrated LED illumination for streamlined operator control stations. These components connect to bus communication networks in industrial automation panels to manage operator commands and visual feedback simultaneously.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 1
  • Number of fault-signal switches (EF007613): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Type of electric connection (EF003961): Flat plug-in connection
  • Model (EF000010): Clip-on
  • Mounting method (EF000003): Front fastening
  • Lamp holder (EF000048): LED not exchangeable

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Function element
Catalog Number
115974
Model Code
M22-SWD-K11LED-G
EAN
4015081157143
Product Length/Depth
45 mm
Product Height
42 mm
Product Width
10 mm
Product Weight
0.009 kg
Certifications
CSA File No.: 2324643
IEC/EN 61131-2
CSA
EN 50178
UL Category Control No.: NKCR
UL
UL File No.: E29184
CSA Class No.: 3211-07
BV
LRS

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
