View larger
Images are for illustrative purposes only. Please refer to data sheet for details

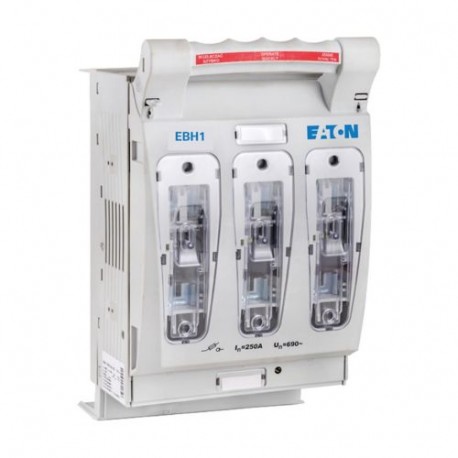

SIZE 1 HOR FSD-60MM BUS:SCREWS EBH113TBM1 EATON ELECTRIC Switch disconnector, low voltage, 160 A, AC 690 V, ..
SIZE 1 HOR FSD-60MM BUS:SCREWS
EBH113TBM1
EBH113TBM1
EATON - MOELLER
1 Pcs.
Switch disconnector, low voltage, 160 A, AC 690 V, NH000, AC21B, 3P, IEC, 60mm busbar, cable terminal – top, for connection of round conductors - S-bridge clamps
SIZE 1 HOR FSD-60MM BUS:SCREWS
Eaton Bussmann series low voltage NH fuse base, Switch disconnector, low voltage, 250 A, AC 690 V, NH1, AC23B, 3P, IEC, 60mm busbar, bottom cable terminals, for connection of conductors with lug terminals - screws
Fuse accessory, Switch disconnector, low voltage, 250 A, AC 690 V, NH1, AC23B, 3P, IEC, Horizontal, 60 mm busbar mounting, bottom cable terminals, V-clamps, NH1 fuse-links, IEC 60947-1, IEC 60947-3, IP30
Connectors > Fuse switch disconnector
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH fuse base
Catalog Number
EBH113TBM1
EAN
5027590336413
Product Length/Depth
280 mm
Product Height
170 mm
Product Width
190 mm
Product Weight
2838 g
Compliances
CE
Electrical rating
Amperage Rating
250 A
Voltage rating
690
Product specifications
Number of poles
Three-pole
Mounting method
60 mm busbar mounting
100 mm busbar mounting
Mounting plate
100 mm busbar mounting
Mounting plate
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | No |
| Version as safety switch (EF006985) | No |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated permanent current Iu (EF001389) | 250 A |
| Rated operation power at AC-23, 400 V (EF007027) | 0.1 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 0.08 kA |
| Suitable for fuses (EF006692) | NH1 |
| Number of poles (EF001391) | 3 |
| With error protection (EF007384) | No |
| Type of electrical connection of main circuit (EF006819) | Cable clamp |
| Cable entry (EF000537) | Below |
| Equipped with connectors (EF011696) | No |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Cover grip |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
| Degree of protection (IP), front side (EF003118) | IP30 |
