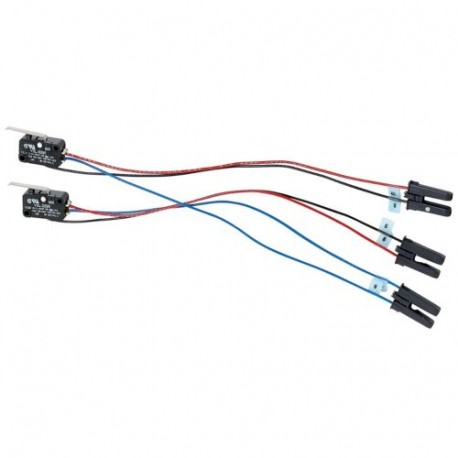

EATON - MOELLER IZMX-OTS40 IZMX-OTS40 156603 IZMX40-OTS EATON ELECTRIC Signalling switch tripped, 2W View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IZMX-OTS40 156603 IZMX40-OTS EATON ELECTRIC Signalling switch tripped, 2W

IZMX-OTS40

156603

IZMX40-OTS

EATON - MOELLER

1 Pcs.

Signalling switch tripped, 2W IZMX-OTS40

Automation > Accessories/spare parts for low-voltage switch technology
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller signalling switch, part number IZMX-OTS40 (156603, IZMX40-OTS), provides remote indication of breaker tripped status in heavy-duty electrical switchgear. Auxiliary signaling contacts allow control rooms to monitor circuit breaker trips instantly, supporting prompt system diagnostics. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Accessory (EF013236): No
  • Spare part (EF013237): No

More info

▲
EL-Nummer (Norway)
0004357568
Signalling switch tripped, 2W
Signaling switch tripped

Delivery program

Product range
Accessories
Accessories
Trip indication / Reset options
Accessories
Trip-indicating auxiliary switch
Overcurrent trip switch (OTS) with two changeover contacts.
For use with
IZMX40...

Technical data

Rated breaking capacity
Inductive load250 V AC
10 A
Inductive load125 V DC
0.5 A
Inductive load250 V DC
0.25 A

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Accessories for low-voltage switch technology (EC002498)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Component for low-voltage switch technology (accessories) ([email protected] [AKN570013])
Type of accessory
Other
