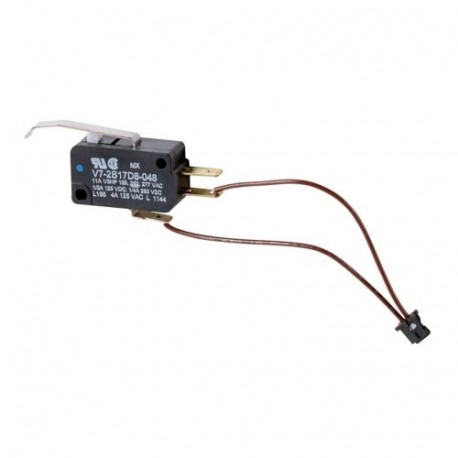

EATON - MOELLER +IZMX-LCS-SR +IZMX-LCS-SR 124349 EATON ELECTRIC Signalling switch ready to switch on, 1W (IZMX-SR) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-LCS-SR 124349 EATON ELECTRIC Signalling switch ready to switch on, 1W (IZMX-SR)

+IZMX-LCS-SR

124349

EATON - MOELLER

1 Pcs.

Signalling switch ready to switch on, 1W (IZMX-SR) Signalling switch ready to switch on, built-in actuation through closing release

Automation > Auxiliary contact block

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller +IZMX-LCS-SR 124349 EATON ELECTRIC Signalling switch ready to switch on, 1W (IZMX-SR) is an integrable signaling switch configured to indicate breaker readiness within power distribution setups. Circuit protection engineers install these change-over switches to transmit critical operational readiness telemetry to centralized automation networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of fault-signal switches (EF007613): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
  • Type of electric connection (EF003961): Flat plug-in connection
  • Model (EF000010): Integrable

More info

▲

General specifications

Product Name
Eaton Moeller series IZMX/INX auxiliary contact block
Catalog Number
124349
Model Code
+IZMX-LCS-SR
EAN
4015081219544
Product Length/Depth
100 mm
Product Height
100 mm
Product Width
100 mm
Product Weight
0.023 kg
Compliances
RoHS conform

Delivery program

Model
Integrable
Accessory/spare part type
Auxiliary contact

Technical data - electrical

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
10 A
Rated breaking capacity (inductive load)
0.5 A (125 V DC)
10 A (250 V AC)
0.25 A (250 V DC)

Technical data - mechanical

Mounting Method
Other
Number of contacts (change-over contacts)
1
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
0
Number of switches (fault signal)
0
Lamp holder
None

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Additional information

Special features
Used with
INX16..., INX40...
IZMX16..., IZMX40...
