View larger
Images are for illustrative purposes only. Please refer to data sheet for details

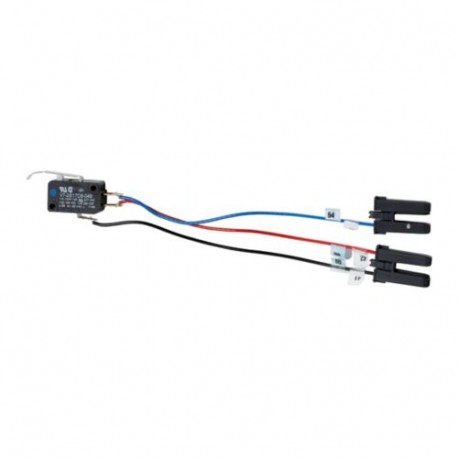

+IZMX-LCS 124347 EATON ELECTRIC Signalling switch ready to switch-on, 1W
+IZMX-LCS
124347
EATON - MOELLER
1 Pcs.
Signalling switch ready to switch-on, 1W
Signalling switch ready to switch on, external actuation
Automation > Auxiliary contact block
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller series IZMX/INX auxiliary contact block
Catalog Number
124347
Model Code
+IZMX-LCS
EAN
4015081219520
Product Length/Depth
100 mm
Product Height
100 mm
Product Width
100 mm
Product Weight
0.023 kg
Compliances
RoHS conform
Delivery program
Model
Integrable
Accessory/spare part type
Auxiliary contact
Technical data - electrical
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
10 A
Rated breaking capacity (inductive load)
10 A (250 V AC)
0.5 A (125 V DC)
0.25 A (250 V DC)
0.5 A (125 V DC)
0.25 A (250 V DC)
Technical data - mechanical
Mounting Method
Other
Number of contacts (change-over contacts)
1
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
0
Number of switches (fault signal)
0
Lamp holder
None
Design verification as per IEC/EN 61439 - technical data
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Additional information
Special features
Used with
IZMX16..., IZMX40...
INX16..., INX40...
INX16..., INX40...
| Feature Name | Feature Value |
|---|---|
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of fault-signal switches (EF007613) | 0 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 10 A |
| Type of electric connection (EF003961) | Flat plug-in connection |
| Model (EF000010) | Integrable |
| Mounting method (EF000003) | Other |
| Lamp holder (EF000048) | None |
