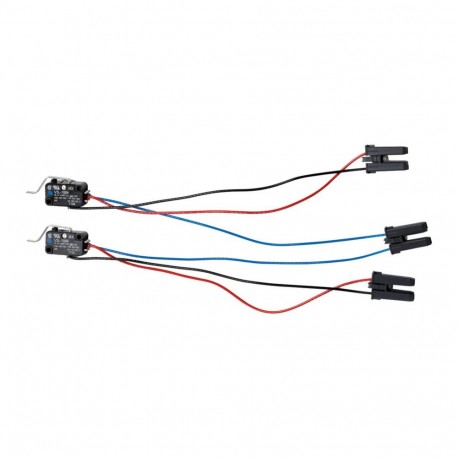

+IZMX-AS66 124344 EATON ELECTRIC Signalling switch ON-OFF, 6W
+IZMX-AS66
124344
EATON - MOELLER
1 Pcs.
Signalling switch ON-OFF, 6W
Standard auxiliary switch, for ON/OFF annunciation
Automation > Auxiliary contact block
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The +IZMX-AS66 124344 EATON ELECTRIC Signalling switch ON-OFF, 6W provides comprehensive contact outputs to relay the operational status of heavy electrical switching devices.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of contacts as change-over contact (EF008257): 6
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 0
- Number of fault-signal switches (EF007613): 0
- Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
- Type of electric connection (EF003961): Flat plug-in connection
- Model (EF000010): Integrable
More info
▲Signalling switch ON-OFF, 6W
Standard auxiliary switch, for ON/OFF annunciation
Delivery program
Product range
Accessories
Accessories
Auxiliary contact
Accessories
Standard auxiliary switch for On-Off signaling
Standard auxiliary switch for On-Off signaling.
The basic device already contains two changeover contacts.
Two additional changeover contacts possible.
The basic device already contains two changeover contacts.
Two additional changeover contacts possible.
For use with
IZMX40...
INX40...
INX40...
6 changeover contacts
Technical data
Rated breaking capacity
Inductive load250 V AC
10 A
Inductive load125 V DC
0.5 A
Inductive load250 V DC
0.25 A
Design verification as per IEC/EN 61439
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Auxiliary contact block (EC000041)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Auxiliary switch block ([email protected] [AKN342010])
Number of contacts as change-over contact
6
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
0
Rated operation current Ie at AC-15, 230 V
10 A
Type of electric connection
Flat plug-in connection
Model
Half-integrated
Mounting method
Other
